Battery holder for CR2032 batteries - SMD version.Every circuit needs energy. Here a CR2032 battery with 3V can be inserted very easily. Cables can be soldered to the solder tags or the battery holder can be soldered to a PCB.The SMD version has the solder tags on the side and a plain bottom.100 battery holder are included in the delivery.

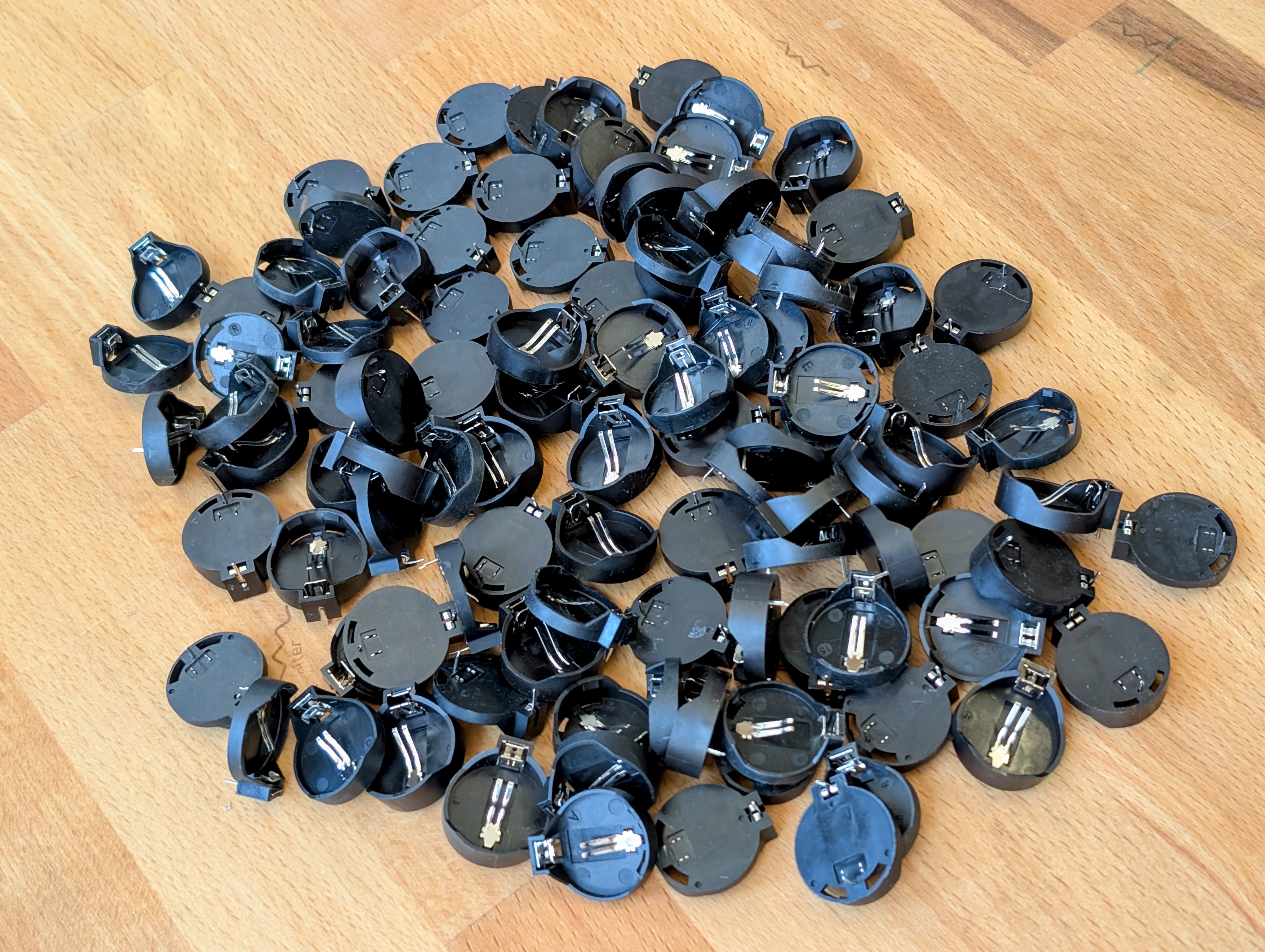

Every circuit needs energy. Here a CR2032 battery with 3V can be inserted very easily. Cables can be soldered to the soldering legs or the battery holder can be soldered to a PCB.The THT version has two small legs at the bottom.100 battery holder are included in the delivery.

What is the use of a circuit without a switch? This great Push Button locks, so it stays in the respective switch position and feels haptically very good. Ideal also for smaller children's hands! There are only two switching states: on and off. Perfect for any craft project. The switch is only suitable for safety extra-low voltage and maximum 0.5 A.Knob diameter: 4.4 mm Overall dimensions without connections (LxWxH): 12x8x8 mm Length with solder tags: 26.5 mm100 buttons are included in the scope of delivery.

Probably the most important foundation for a colorful craft project: color-changing LEDs!The RGBs change color slowly and independently from red to green, blue violet, white, yellow and green. And all without programming. The color transition is very slow, which leads to a nice effect.The LEDs run on 3V. One CR2032 battery is enough. If you want to run more LEDs, two AA batteries in series are very good.Some example ideas can be seen in the gallery. The pictures are to be seen as a "serving suggestion". You are buying here 100 RGB LEDs.

Electrolytic capacitor 50V with 10UF and a size of 5*7mm. You will get 10 capacitors.

TX2400-JKD-20 is a bendable 2.4 GHz rubber antenna. The height of the antenna is 200 mm. With an SMA-J connector (SMA female thread and internal needle), it can be used for broadband communication systems, WLAN, mobile devices with a frequency of 2.4 GHz such as routers, AP, radio, smart TV, etc.The antenna is compatible with the Ebyte radio module NRF24L01 E01-ML01DP5, however the antenna is not suitable for the OpenDTU housing.Technical Data Frequency: 2.4 GHz Bandwidth: 2.4 - 2.5 GHz Gain: 5.0 dBi SWR (standing wave ratio): ≤ 1,5 Polarisation: vertical Direction of radiation: omnidirectional Input impedance: 50 Ohm Power capacity: 20 W Material: TPE-E Operating temperature: -40 °C ~ +85 °C Plug connection: SMA-J (SMA internal thread with internal needle) Dimensions: Length 200 mm; diameter 13 mm Colour: black Weight: 17.3 g

TX868-JKD-20 is a slighly bendable 868 MHz rubber antenna. The height of the antenna is 200 mm. With an SMA-J connector (SMA female thread and internal needle), it can be used for broadband communication systems, WLAN, mobile devices with a frequency of 868 MHz such as routers, AP, radio, smart TV, etc.The antenna is compatible with the Ebyte CMT2300A 868/915MHz Breakoutboard, however the antenna is not suitable for the OpenDTU housing.Technical Data Frequency: 868 MHz GHz Bandwidth: 848 - 888 MHz Gain: 3.0 dBi SWR (standing wave ratio): ≤ 1,5 Polarisation: vertical Direction of radiation: omnidirectional Input impedance: 50 Ohm Power capacity: 20 W Material: TPEE Operating temperature: -40 °C ~ +85 °C Plug connection: SMA-J (SMA internal thread with internal needle) Dimensions: Length 200 mm; diameter 13 mm Colour: black Weight: 21 g

TX868-JZLW-15 is a rubber antenna with 868 MHz frequency band, antenna size approx. 165 mm, interface an IPEX-1 connector, suitable for 868 MHz frequency band equipment cabinets, control cabinets, logistics fleets, property security, hotels and restaurants, construction sites , outdoor radio enthusiasts, taxi teams and similar applications.The antenna is compatible with the Ebyte radio module CMT2300A 868/915MHz breakout board, however the antenna is not suitable for the OpenDTU housing. Technical Data Frequency: 868 MHz Bandwidth: 832~920 MHz Gain: 3 dBi SWR (standing wave ratio): ≤ 1,5 Polarisation: vertical Radiation direction: omnidirectional Input impedance: 50 Ohm Power capacity: 20 W Material: TPE-E Operating temperature: -40 °C ~ +85 °C Plug connection: IPEX-1 Dimensions: Length 165 mm; diameter 12.5 mm; thread 6 mm Length of the antenna cable: 150 mm Colour: black Weight: 18.2 g

Battery holder for CR2032 batteries - SMD version.Every circuit needs energy. Here a CR2032 battery with 3V can be inserted very easily. Cables can be soldered to the solder tags or the battery holder can be soldered to a PCB.The SMD version has the solder tags on the side and a plain bottom.One battery holder is included in the delivery.

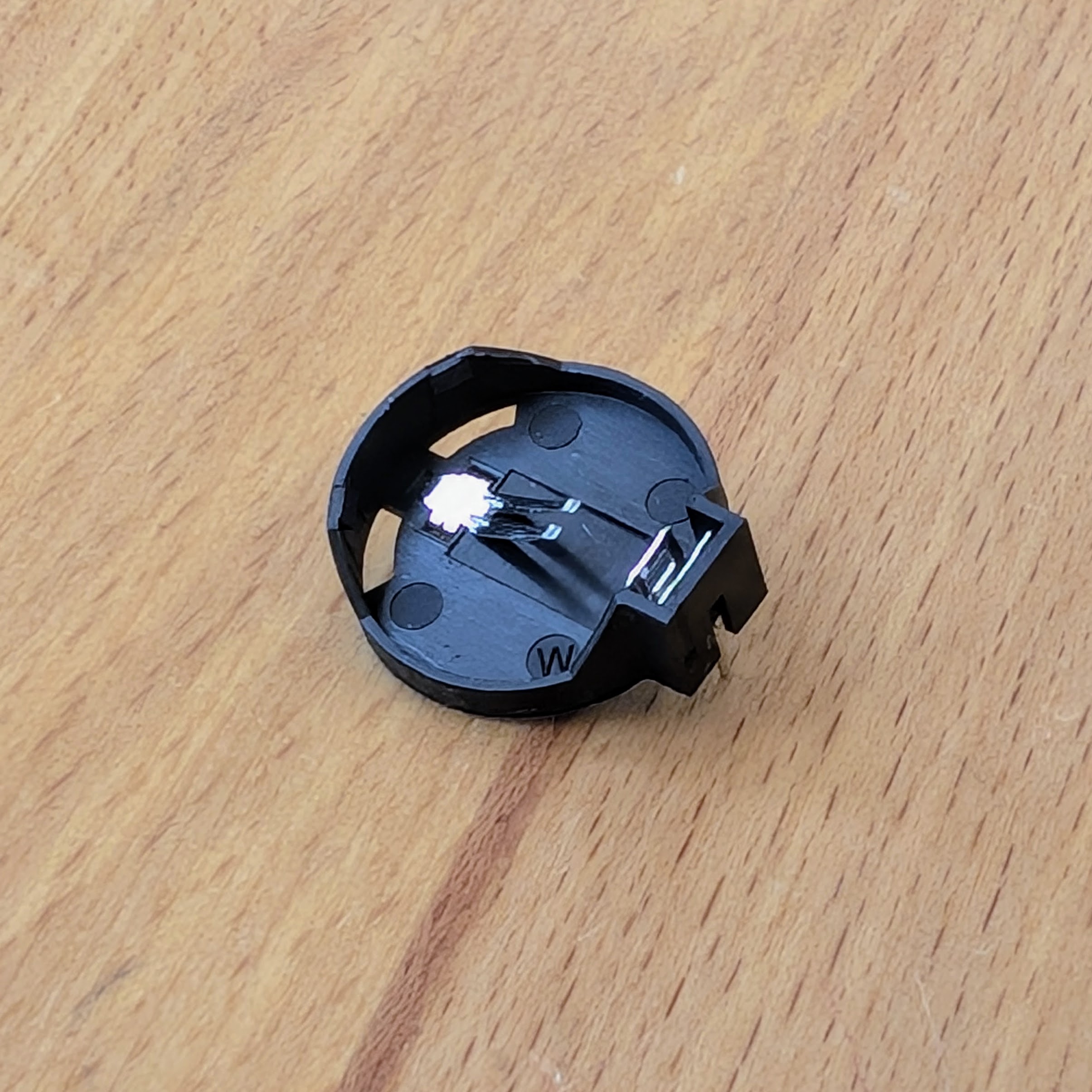

Every circuit needs energy. Here a CR2032 battery with 3V can be inserted very easily. Cables can be soldered to the soldering legs or the battery holder can be soldered to a PCB.The THT version has two small legs at the bottom.One battery holder is included in the delivery.

Every circuit needs energy. Here you can simply insert two AA batteries with 1.5V or two AA rechargeable batteries with 1.2V. Both batteries then supply 2.4 to 3V. The circuit can be connected via the cables. The battery holders do not have an on-off switch.

Every circuit needs energy. Here you can simply insert two AAA batteries with 1.5V or two AAA rechargeable batteries with 1.2V. Both batteries then supply 2.4 to 3V. The circuit can be connected via the cables. The battery holders do not have an on-off switch.

E49-900M20S is a low-cost wireless data transmission module introduced to the market by Chengdu Ebyte. It is a hardware-only module based on the CMT2300A. The E49-900M20S supports a maximum transmit power of 20dBm, but the user can also set a lower output power to save power. The module operates in the 850MHz ~ 930MHz frequency band, including the widely used 868MHz and 915MHz frequencies.This module comes with a breakout board and is pin compatible with OpenDTU's NRF modules. Es ist natürlich auch die passende Antenne dabei. Achtung: Dies ist nur das Funkmodul und für die Bastler gedacht. The radio module breakout board is not enough to build an OpenDTU! You need the complete kit or additional components.Pre-soldered CMT module (optional)We have heard your feedback and understood that SMD soldering is probably not for everyone. Therefore, we have decided to offer the module pre-soldered. Only the CMT module (the silver chip) is soldered on. The pin header and antenna module are much easier to solder and still need to be soldered by you. We actually solder them by hand, so unfortunately we have to charge a little more to justify the extra effort. We hope for your understanding here.Compatibility This radio module is fully compatible with openDTU and ahoyDTU. Unfortunately, we cannot provide support for ahoyDTU. You can find help here at ahoydtu.de . The CMT module is needed for communication with the following inverters: Hoymiles HMS-300-1T Hoymiles HMS-350-1T Hoymiles HMS-400-1T Hoymiles HMS-450-1T Hoymiles HMS-500-1T Hoymiles HMS-600-1T Hoymiles HMS-700-2T Hoymiles HMS-800-2T Hoymiles HMS-900-2T Hoymiles HMS-1000-2T Hoymiles HMS-1600-4T Hoymiles HMS-1800-4T Hoymiles HMS-2000-4THoymiles HMT-1600-4THoymiles HMT-1800-4THoymiles HMT-2000-4THoymiles HMT-1800-6THoymiles HMT-2250-6TTechnical dataThe measured range can reach 2.5 km Maximum transmission power of 20dBm, adjustable in several steps via software Supports ISM 868MHz/915MHz band Supports 0.5Kbps~300Kbps transmission rate Supports low power mode, suitable for battery operation Supports GFSK modulation mode, OOK & (G)MSK Supports 2.6V~3.6V power supply Industrial standard design, up to -40 ~ 85 °C operating temperature IPEX and punch hole optional, good for secondary development and integrationsScope of deliveryCMT2300A SMD moduleAntenna socketAntennaBreakout board2x4 pin header

E01-ML01DP5 is a DIP module based on the original imported nRF24L01P from Nordic in Norway, operating at 2.4Ghz with 100mW transmit power. The E01-ML01DP5's RF performance and component selection during research and development meet industry standards. A high-precision 16MHz industrial-grade crystal oscillator is used and has received FCC, CE and RoHS certification. A power amplifier (PA) and low noise amplifier (LNA) are built in so that the maximum transmit power reaches 100mW and the receive sensitivity is further improved. The products have been significantly improved when there is no PA and LNA in the design.We supply the module with matching 2.4GHz 3dBi omnidirectional antenna.Attention: This is only the radio module and intended for hobbyists. The radio module is suitable for openDTU and ahoyDTU (please pay attention to the matching inverters!). The radio module is not sufficient to build an openDTU! You need the complete kit or additional components.Technical dataThe tested communication distance is up to 2.5KM Maximum transmit power of 100mW, multi-level adjustable via software Supports data transmission rates of 2Mbps, 1Mbps, 250kbps 125 communication channels to meet the requirements of multipoint communication, grouping, frequency hopping, etc. Connects to the MCU via the SPI interface at a rate of 0 to 10Mbps. Support 2.0V~3.6V power supply, power supply above 3.3V can guarantee the best performance. Industrial standard design, support -40~85°C for long time operation. SMA interface for easy connection of coaxial cables or external antennas Improved ShockBurst, fully compatible with all NORDIC nRF24L, nRF24E, nRF24U serieScope of deliveryEbyte NRF24L01 E01-ML01DP5 MoudlOmnidirectional Antenna

Discover the powerful ESP32-WROOM NodeMCU development board! With integrated WiFi and Bluetooth, it allows easy integration into Arduino projects. The ultra-low power design and dual-core processor offer high performance. With soldered headers for easy connection and wide connectivity thanks to WLAN and BLE (Bluetooth Low Energy), there are no limits to your projects. Order the ESP32 Dev Kit now and start your creative ideas! Included is the ESP32 Dev Board with two pin headers (38 pins in total).Technical DataChipset: ESP32 flexible through pin headers Processor: Tensilica LX6 Dual-Core Clock frequency: 240MHz Operating voltage: 3.3V / 5V WIFI: 802.11. b/g/n Bluetooth: Classic and BLE

The energy turnaround is in full swing and great balcony power plants are sprouting up on every balcony. It's beautiful!With this OpenDTU Board kit you can read out your balcony solar power plant, display the data and even control it. The prerequisite is an inverter from Hoymiles. A small display always shows the current power production.The project was started by Thomas and Jan and can of course be found under open source licence here:https://github.com/tbnobody/OpenDTU (there you will also find a list of compatible inverters).This breakout board is 100% compatible and was created together with the developers of the software. On the board there is a special radio module that speaks the radio standard of the inverters. This is read out by an ESP32 module, processed and can be further processed via WLAN, e.g. with MQTT.The board also has connections for a display and an RGB LED strip, which may be supported in a future version.Scope of Delivery In the scope of delivery, you will receive all the necessary components: a display, an ESP32, and an antenna module. You just need to solder them together and enter your Hoymiles serial number, and you're ready to go! The ESP32 is already pre-flashed.CompatibilityThis kit uses the NRF24L01+ module and is compatible with the following Hoymiles models: Hoymiles HM-300 Hoymiles HM-350 Hoymiles HM-400 Hoymiles HM-600 Hoymiles HM-700 Hoymiles HM-800 Hoymiles HM-1000 Hoymiles HM-1200 Hoymiles HM-1500 Solenso SOL-H350 Solenso SOL-H400 Solenso SOL-H800 TSUN TSOL-M350 TSUN TSOL-M800 TSUN TSOL-M1600If you are looking for a module with CMT2300A for the HMS and HMT series from Hoymiles you need this: https://shop.blinkyparts.com/en/OpenDTU-CMT-Your-evaluation-for-your-balcony-solar-system-compatible-to-Hoymiles-HMS-and-HMT-series-CMT-module/blink238342FeaturesRead out live data from the inverter Display the inverter's internal event log Display inverter information such as firmware version, firmware build date, hardware revision and hardware version View and set the current inverter threshold Power off/on function of the inverter Uses ESP32 microcontroller and NRF24L01+ multi-inverter support MQTT support (with TLS) Home Assistant MQTT Auto Discovery support Beautiful and fancy WebApp with visualisation of current data Firmware upgrade via the Web UI Standard source supports up to 10 inverters Time zone support Prometheus API endpoint (/api/prometheus/metrics) English, German and French web interface Direct connection of displays (SSD1306, SH1106, PCD8544) Dark theme in the web interfaceThe HousingThe kit comes with a high-quality 3D printed housing. You can also print it yourself. We have published the files here:https://www.printables.com/de/model/441037-opendtu-breakoutboard-caseTarget GroupThis kit is designed for all those who have a solar power plant at home and a suitable Hoymiles inverter. Without the inverter and the solar panels the kit is just a nice paperweight with display ;). The electronics kit for soldering is designed for beginners. Relatively large components are used, which make it easy to learn how to solder. This is also possible for absolute beginners in a reasonable time.Required toolsWhat the minimum soldering workstation looks like is described here: Der LötarbeitsplatzYou will also need a micro USB cable and a suitable USB power supply. Two toothpicks are very practical. An electric side cutter is also very useful for this kit :) Instructions and helpTo make it easy for you to solder the kit, we have put together detailed instructions with lots of pictures and individual steps for each of our kits. There you will be guided step by step through the assembly and there are many tips and tricks on how to solder correctly. For the majority of our soldering kits there are also interactive circuits with the names of the components and the tracks. All instructions are available in German and English.The instructions also describe the software part as far as the software is installed, connected to your WLAN and you have set up your inverter. Everything else is self-explanatory in the web interface. For environmental reasons, we do not print our instructions. It is even better to view them on screen, as you can then zoom into the high-resolution photos to see the details. On each kit you will find a QR code or link to the instructions. You can find all the instructions as PDF files at the following link: https://binary-kitchen.github.io/SolderingTutorialJust click on "DE" or "EN" for the right kit and you can download a PDF.Lovingly packed for you by handAll soldering kits are lovingly packed for you by hand in Germany. Unfortunately, it happens from time to time that a component is packed too much or too little. If something is too much: No problem! Keep the components and use them for your creations! If something is missing: No problem! Just send us an email and we will send you the missing parts.Show us your solar system and your OpenDTU evaluationWe at blinkyparts are super excited to hear what your solar system looks like and how/what you did with your OpenDTU kit. Share your photo with us atTwitter/Mastodon: #SolderingConnectsInstagram: #SolderingConnects or follow us on @blinkyparts_comHelp others with your feedbackIt is often difficult to judge whether a soldering kit is something for you. Help others by giving us a rating, a feedback. How did it work? What equipment did you have? What did you like most about it? What does your solar system do? Just leave a review here on the product page under "Reviews".

What is the use of a circuit without a switch? This great Push Button locks, so it stays in the respective switch position and feels haptically very good. Ideal also for smaller children's hands! There are only two switching states: on and off. Perfect for any craft project. The switch is only suitable for safety extra-low voltage and maximum 0.5 A.Knob diameter: 4.4 mm Overall dimensions without connections (LxWxH): 12x8x8 mm Length with solder tags: 26.5 mmOne button is included in the scope of delivery.

Every maker and hobbyist needs resistors for almost every project. This assortment contains the most important sizes. 20 pieces each. Properties 0.25W (1/4W) - Suitable for most projects Metal film resistors with high precision: tolerance 1% High stability Scope of delivery 600 resistors in total. Each 20x the following size: 10Ω 22Ω 47Ω 100Ω 150Ω 200Ω220Ω270Ω 330Ω 470Ω 510Ω 680Ω 1KΩ 2KΩ 2.2KΩ 3.3KΩ 4.7KΩ 5.1KΩ 6.8KΩ 10KΩ 20KΩ 47KΩ 51KΩ

Probably the most important foundation for a colorful craft project: color-changing LEDs!The RGBs change color slowly and independently from red to green, blue violet, white, yellow and green. And all without programming. The color transition is very slow, which leads to a nice effect.The LEDs run on 3V. One CR2032 battery is enough. If you want to run more LEDs, two AA batteries in series are very good.Some example ideas can be seen in the gallery. The pictures are to be seen as a "serving suggestion". You buy here only one RGB LED.

When we laser our Humos, there are always a few pieces of wood left over. We don't know what to do with them, but I'm sure you have an idea! Use the boards for handicrafts, as signs or burn a nice picture into them. Maybe just paint them? Get creative and show us what you have done :). The wooden parts are made of 3mm poplar plywood. The square parts are about 51x51mm. The round elements have a diameter of 110mm. The usual delivery is 1x round, 4x square. If you need more, please write us an email. The wooden parts are free of charge. We reserve the right to omit the wooden elements if they no longer fit in the package or if the next higher weight class is due to the weight. Also only while stocks last.
