868 MHz antenna - Ebyte TX868-JKD-20 with SMA connector

€3.99*

Available, delivery time: 1-3 days

Product number: blink239742
Product information "868 MHz antenna - Ebyte TX868-JKD-20 with SMA connector"

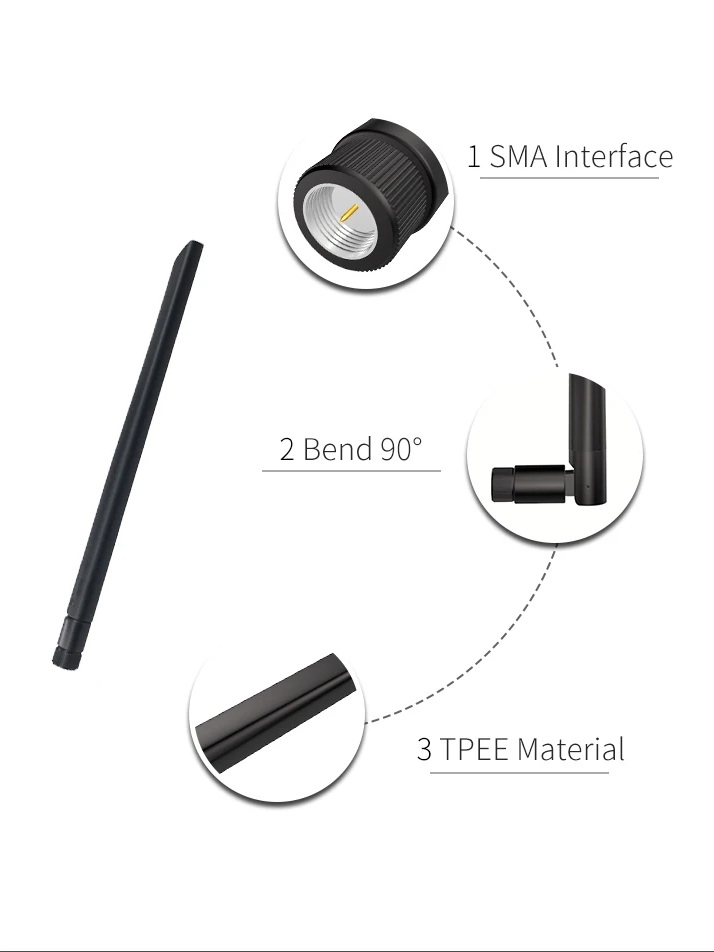

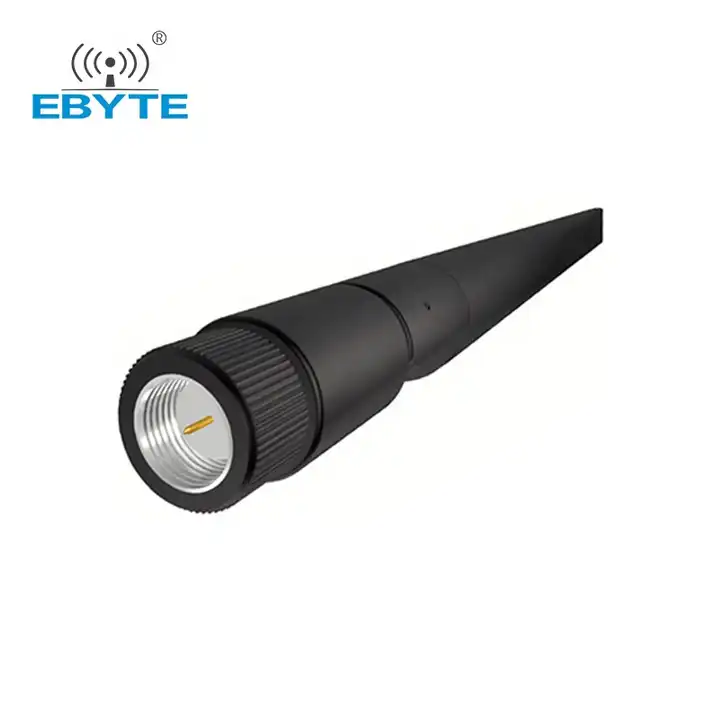

TX868-JKD-20 is a slighly bendable 868 MHz rubber antenna. The height of the antenna is 200 mm. With an SMA-J connector (SMA female thread and internal needle), it can be used for broadband communication systems, WLAN, mobile devices with a frequency of 868 MHz such as routers, AP, radio, smart TV, etc.
The antenna is compatible with the Ebyte CMT2300A 868/915MHz Breakoutboard, however the antenna is not suitable for the OpenDTU housing.

Technical Data

  • Frequency: 868 MHz
  • GHz Bandwidth: 848 - 888 MHz
  • Gain: 3.0 dBi
  • SWR (standing wave ratio): ≤ 1,5
  • Polarisation: vertical
  • Direction of radiation: omnidirectional
  • Input impedance: 50 Ohm
  • Power capacity: 20 W
  • Material: TPEE
  • Operating temperature: -40 °C ~ +85 °C
  • Plug connection: SMA-J (SMA internal thread with internal needle)
  • Dimensions: Length 200 mm; diameter 13 mm
  • Colour: black
  • Weight: 21 g
Target group: Grownup, Nerd

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


Weitere Blinke-Bausätze

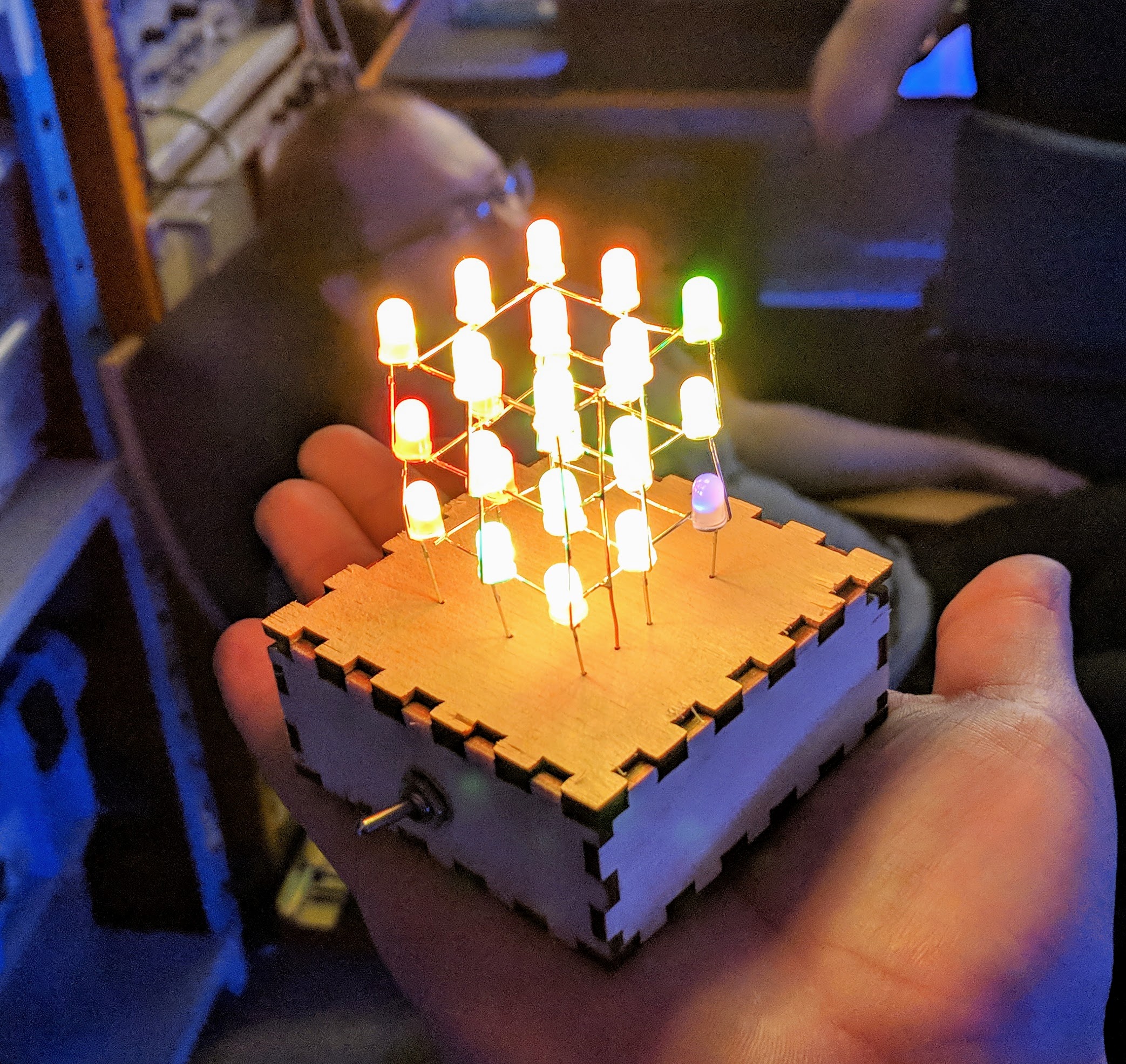

LED Cube - A colorful LED 3D cube with 27 colorful glowing LEDs
This kit consists of 27 LEDs a simple circuit and a nice wooden box to hide the battery. First you solder a simple LED 3D cube with 3x3x3 LEDs. The total of 27 LEDs shine in bright colors. The box with a power switch and a battery holder for AA looks very good on the desk.No programming knowledge is needed, just a little soldering skill. After that, the LEDs shine independently in all colors of the rainbow.

€11.49*

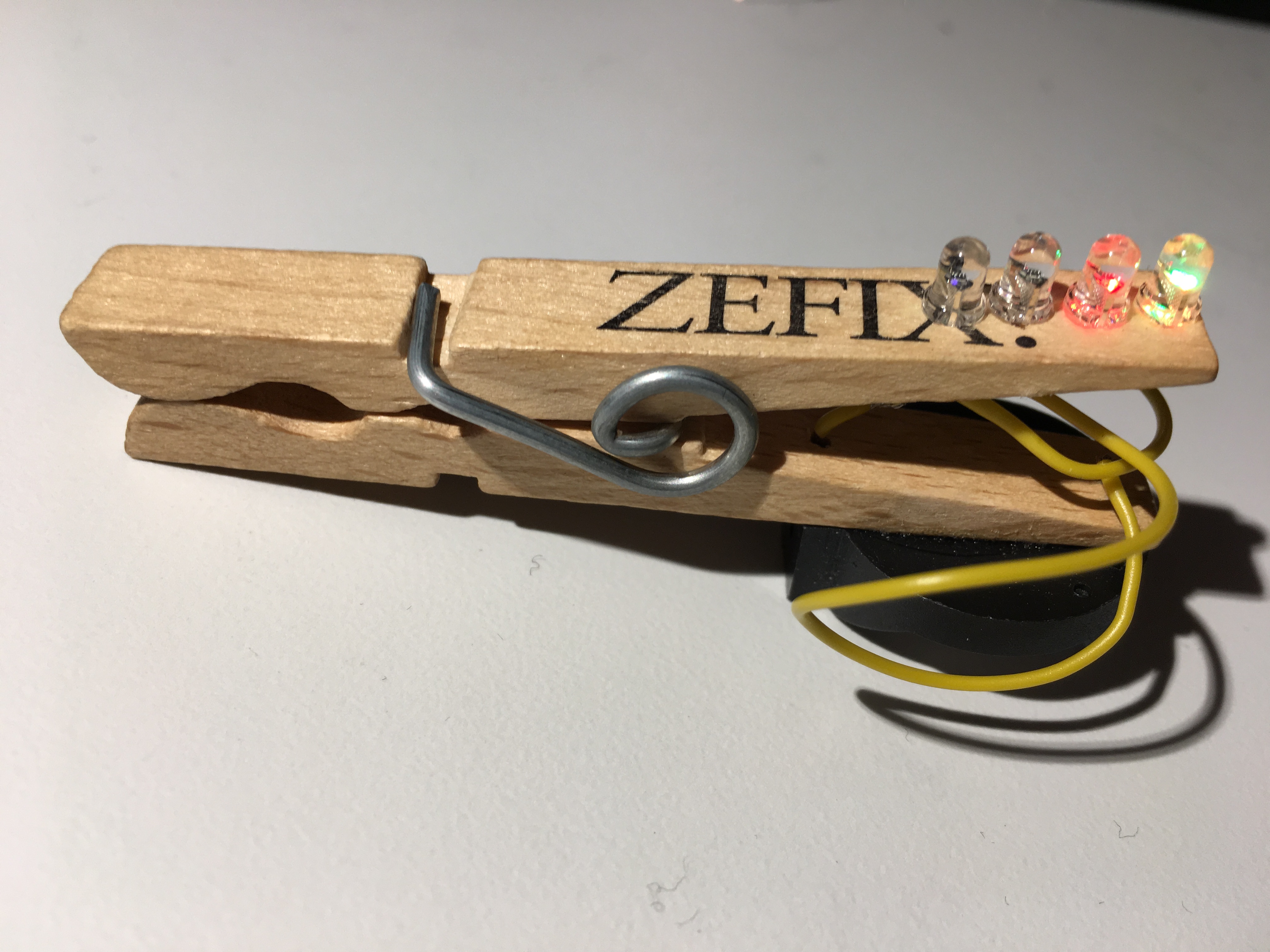

Nibble Peg - Very simple kit with 4 LEDs
A very simple soldering kit with four LEDs. The four LEDs are connected with a few wires to a battery holder. As soon as a battery is inserted, the LEDs light up in all colors of the rainbow. Thanks to the clothespin, you can easily attach the artwork afterwards. No big soldering skills are needed for this kit. It is really ideal even for children and teenagers.The name comes from the unit "Nibble". A nibble is a unit for four bits (half a byte).

€2.23*
Kitchenkopf with SMD - A medium hard kit with SMD to hang around your neck
The Kitchenhead kit is ideal for learning SMD soldering. The Kitchenkopf kit has 21 SMD LEDs on the board that light up in different animations and display the logo of the Hackspace Binary Kitchen e.V..The animation is made possible with a microcontroller, which is already pre-programmed with the kit.With this SMD kit, first steps with SMD soldering can be made. SMD components of the size 0805 are used. In the SMD world this is relatively large. Because of the size and the components used you will have longer fun with the kit and can thus learn new skills of SMD soldering.

€7.99*

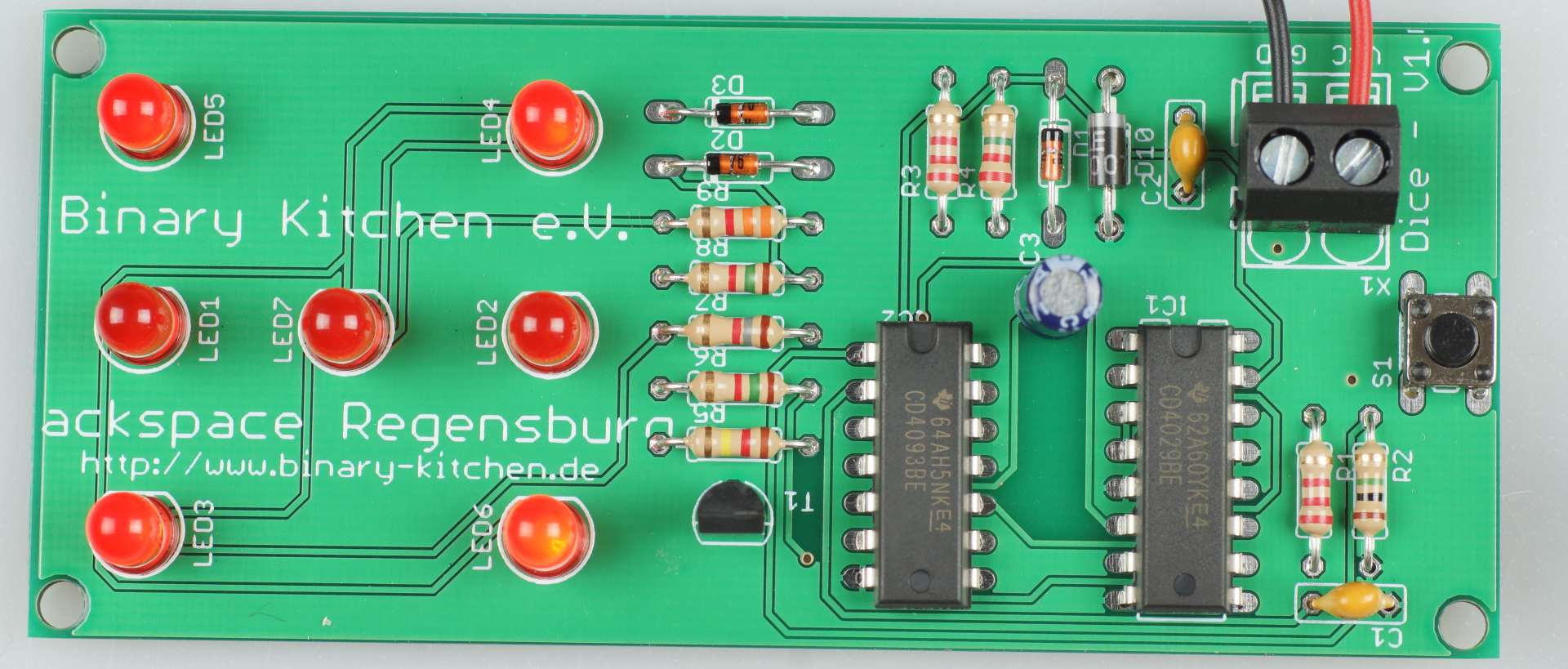

Dice with logic circuits - A medium dice kit ideal for beginners and experienced students
