Humo - Your very own solder fume extractor
Product information "Humo - Your very own solder fume extractor"
Humo – Your Personal Solder Fume Extractor
Humo is your friendly companion for clean soldering: a compact, DIY solder fume extractor with a charming look and powerful function. Its large googly eyes add fun to your workspace while the built-in charcoal filter and 12V LED strip ensure clear air and perfect lighting for precise soldering.

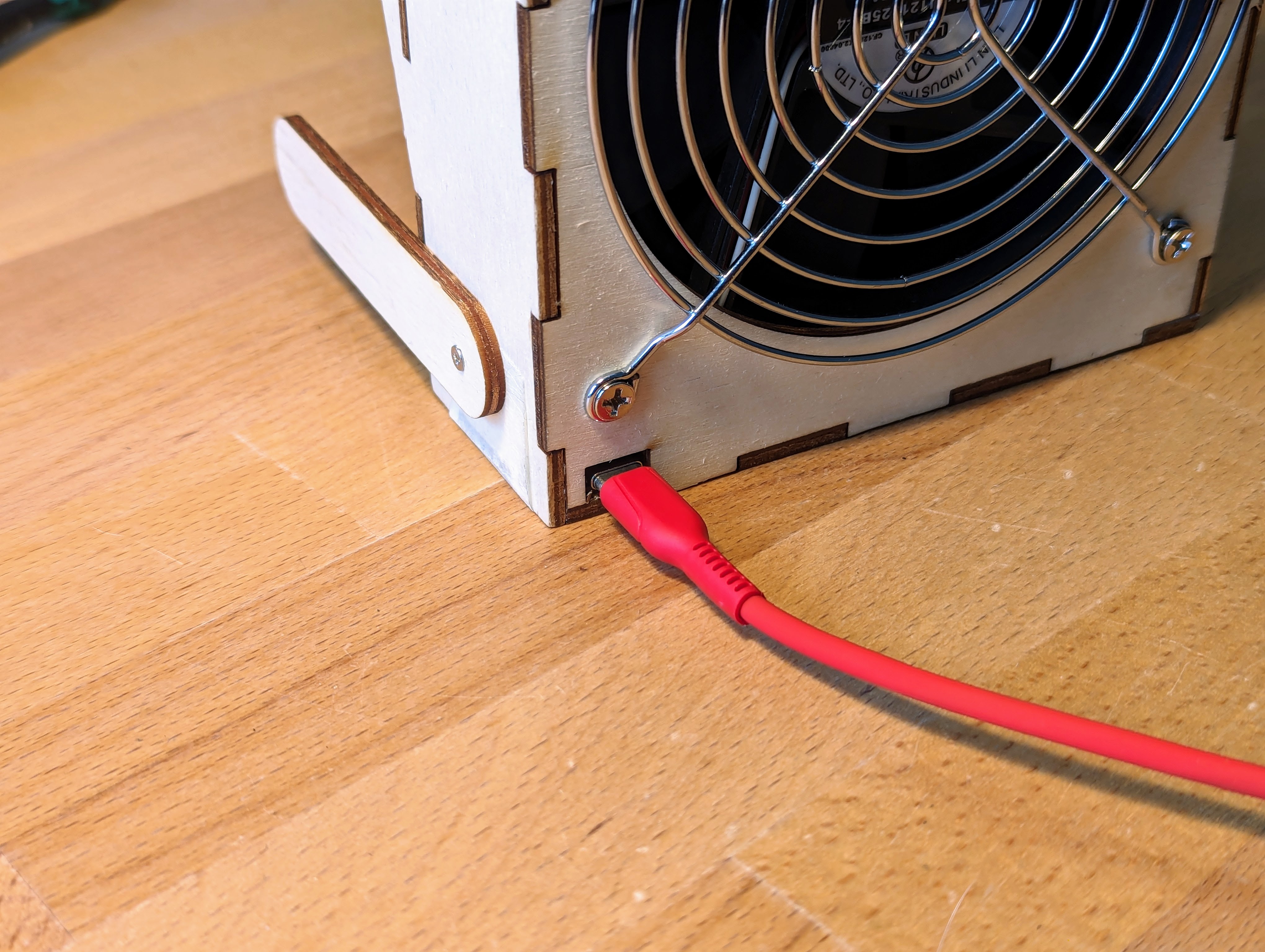

The kit is great for makers, hackerspaces, classrooms, and anyone who regularly solders. Minimal soldering and some glue are required for assembly. Powered via USB-C using a step-up converter, it transforms 5V into 12V to run both fan and lighting efficiently.
Features:
- Powerful 120mm fan with activated carbon filter

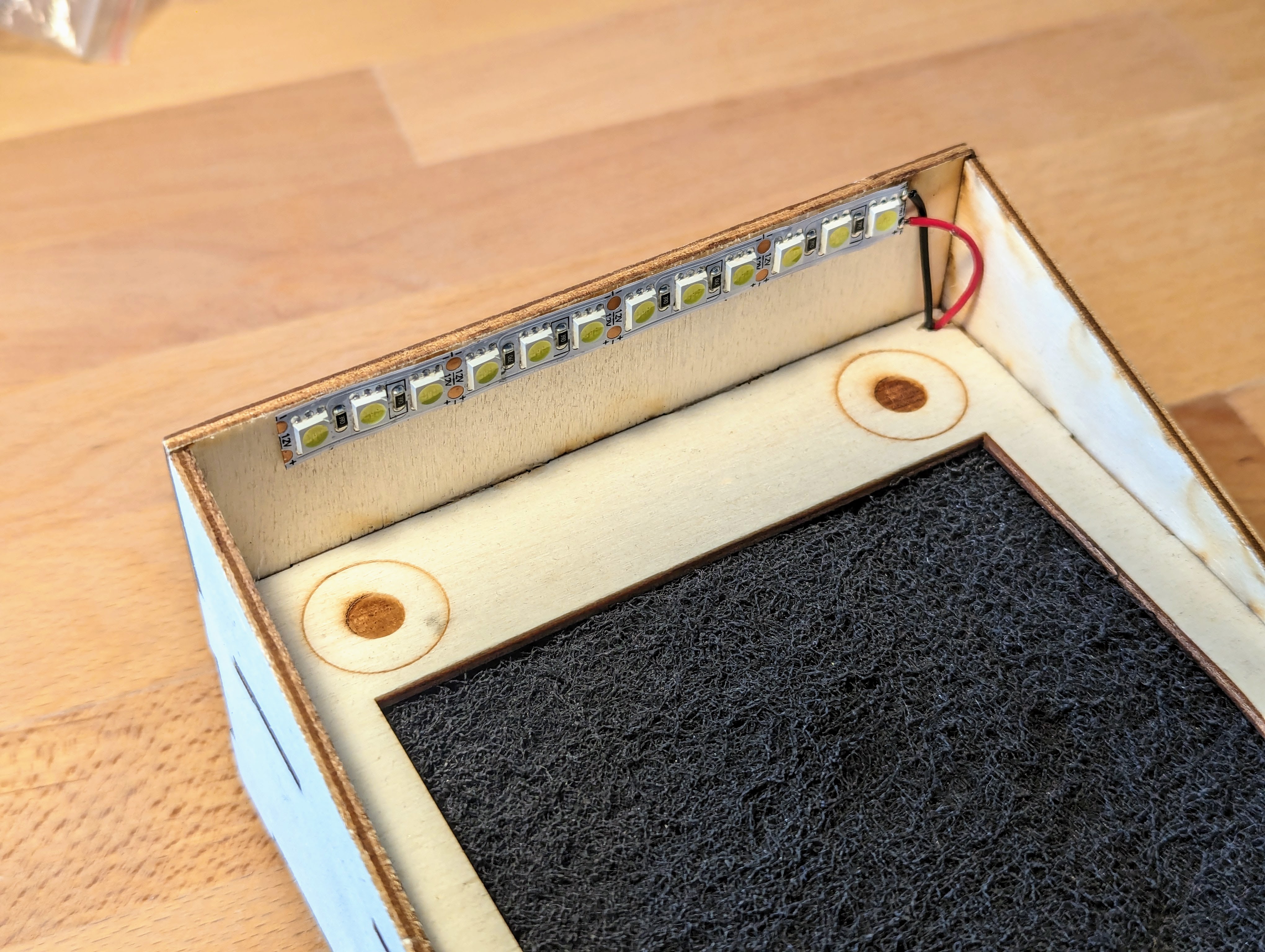

- Bright 12V LED strip for well-lit solder joints
- USB-C Power Delivery support
- Laser-cut wooden enclosure
- Fully open-source – files available on GitHub

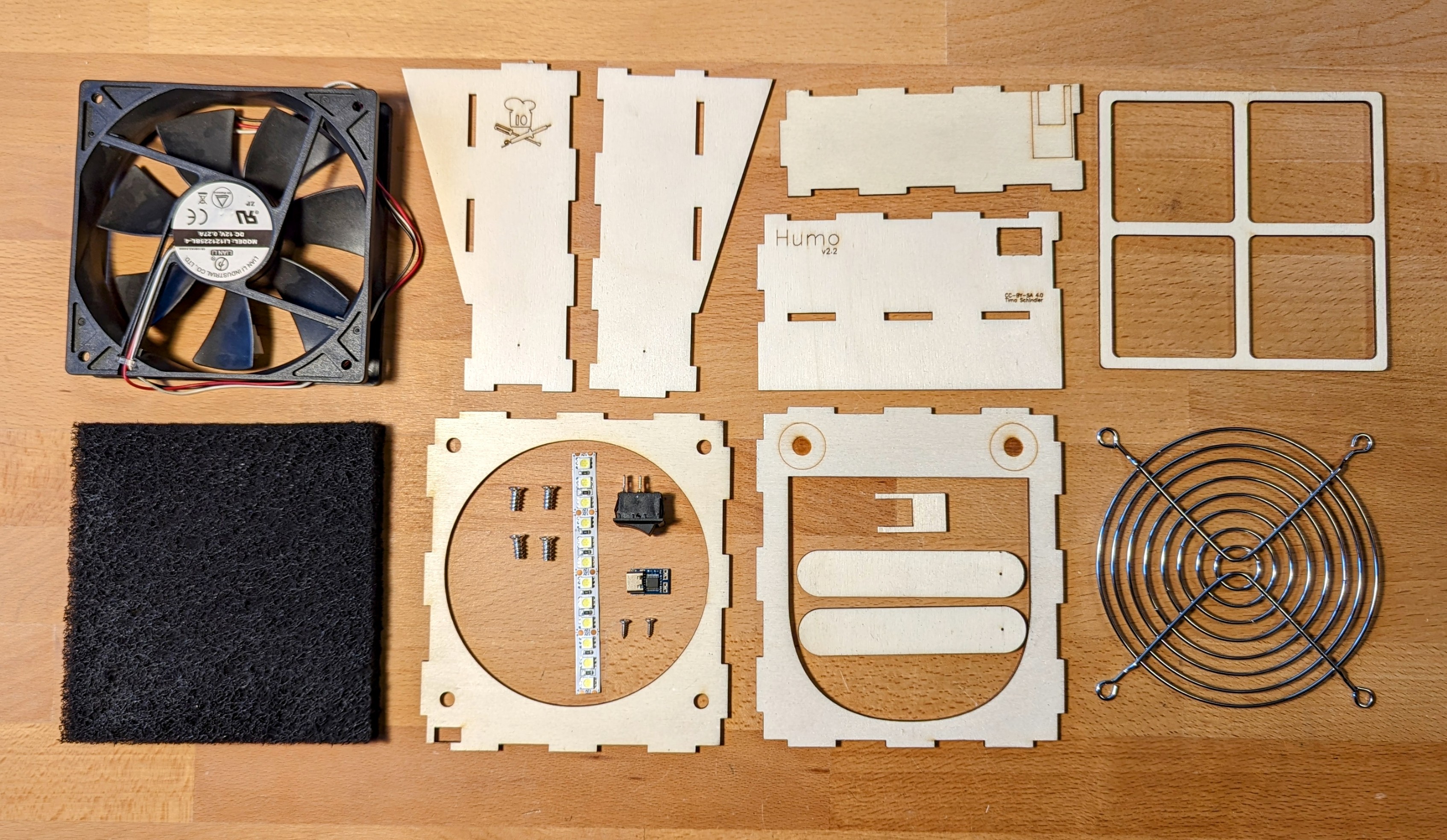

Kit contents (Version 2.3):
- Laser-cut wooden parts (3mm)
- 120mm SUNON fan
- Activated carbon filter
- USB-C to 12V trigger board
- 10cm 12V warm white LED strip
- On/off switch
- Assembly screws
GitHub Repository: https://github.com/blinkyparts/humo
Assembly guide: See the wiki
By the way: “Humo” means “smoke” in Spanish – the perfect name for your new solder fume extractor!
| Build Time: | 20-40 Minutes |
|---|---|
| Difficulty: | Easy |
| Manual and iteractive board: | https://binary-kitchen.github.io/SolderingTutorial/ |
| Target group: | Children, Grownup, Nerd |
Login
1 review
31 August 2023 15:51
Erstes Lötprojekt
Der Humo für saubere Luft beim Löten!
Bestellung, Versand, Lieferung waren genau so wie man es erwartet. Der Humo war der erste Bausatz an den ich mich gewagt habe :
- Sehr gute Anleitung
- Löten hat auch sehr gut geklappt
- Funktioniert - der Lötrauch wird merklich abgezogen (vorausgesetzt man ist nicht zu weit weg vom Humo ;-) )
Ein erfolgreiches Projekt mit Nutzen für die weiteren Lötprojekte :-)
Humo

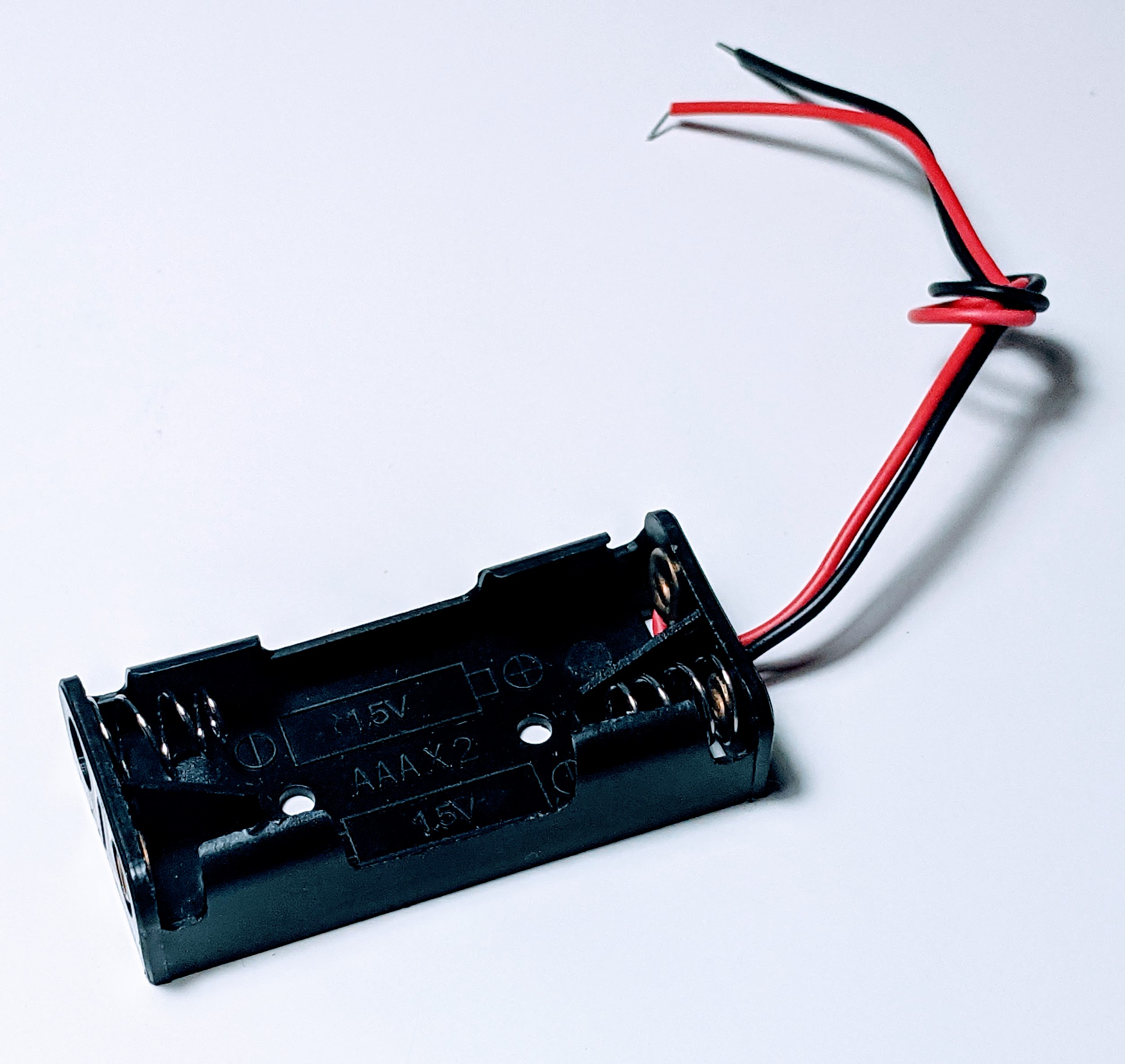

Every circuit needs energy. Here you can simply insert two AAA batteries with 1.5V or two AAA rechargeable batteries with 1.2V. Both batteries then supply 2.4 to 3V. The circuit can be connected via the cables. The battery holders do not have an on-off switch.

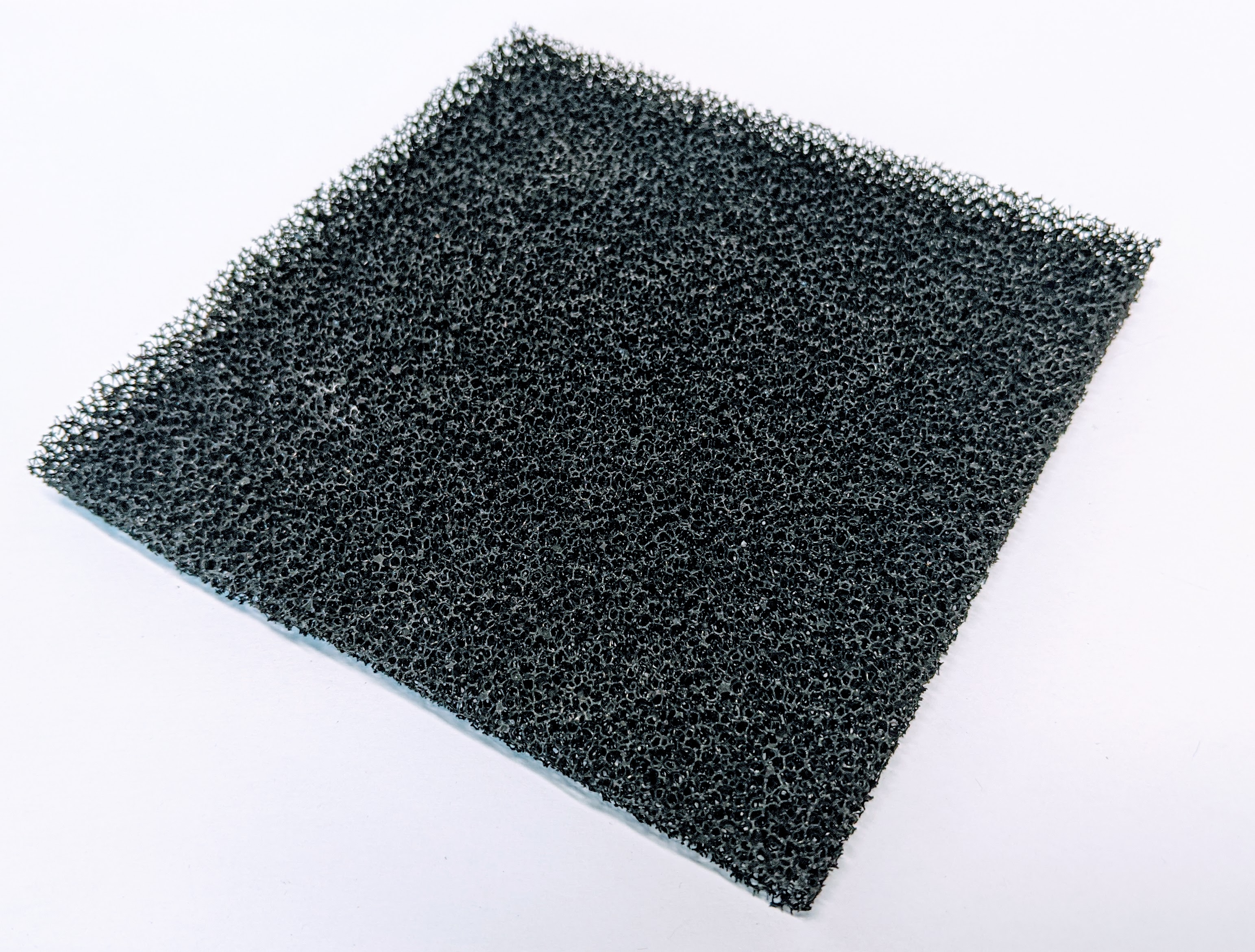

A replacement filter made of activated carbon for solder fume extraction Humo
