Hakko FX-972 Dual-Port Soldering Station – Professional 200W Dual Station

The Hakko FX-972 2-port soldering station is the powerful successor to the proven predecessor models FM-202 and FM-203. This advanced soldering station presents itself as a complete solution for precise soldering work in electronics manufacturing and repair. With eight handpiece options, intelligent channel control, and comprehensive calibration functions, it provides maximum flexibility for demanding soldering tasks.

Technical Specifications

• Total Power: 200 W (2 × 100 W channels)
• Temperature Range: 50°C to 450°C

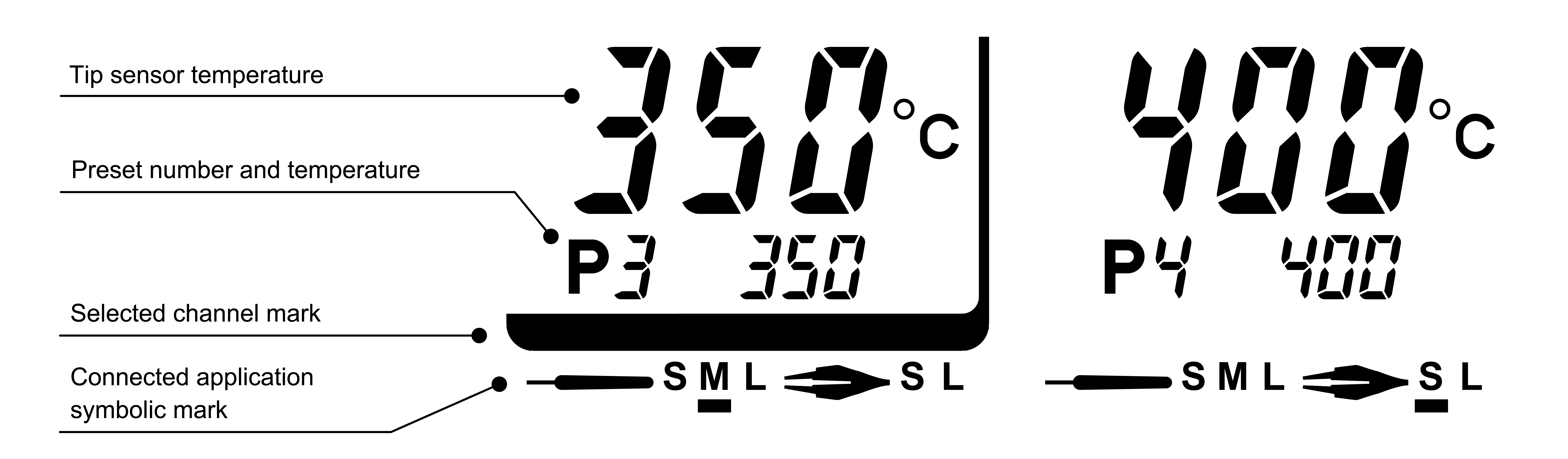

• Independent Temperature Control for Both Channels
• Intelligent Priority Channel Function
• USB Interface for Process Monitoring and HAKKO Control Software

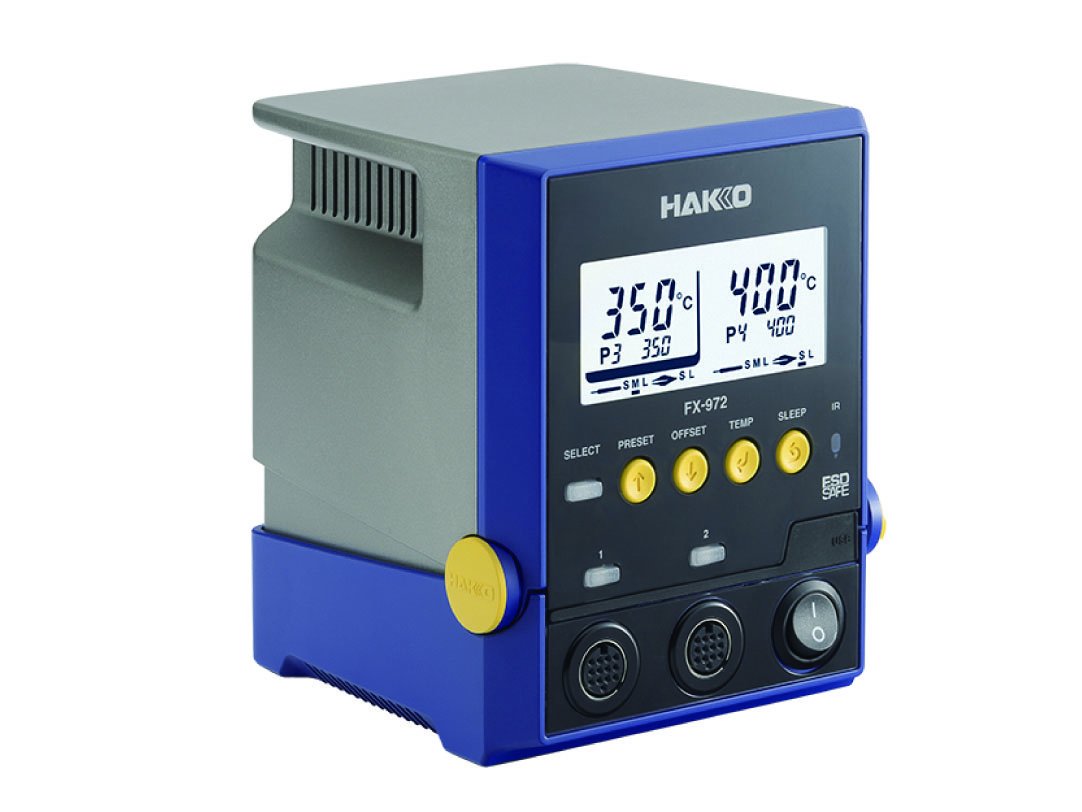

• Large LCD Display with Adjustable Tilt
• Infrared Communication with HAKKO Tip Thermometer
• Auto-Sleep and Automatic Shutdown Function
• Password Protection for Process Control

Features

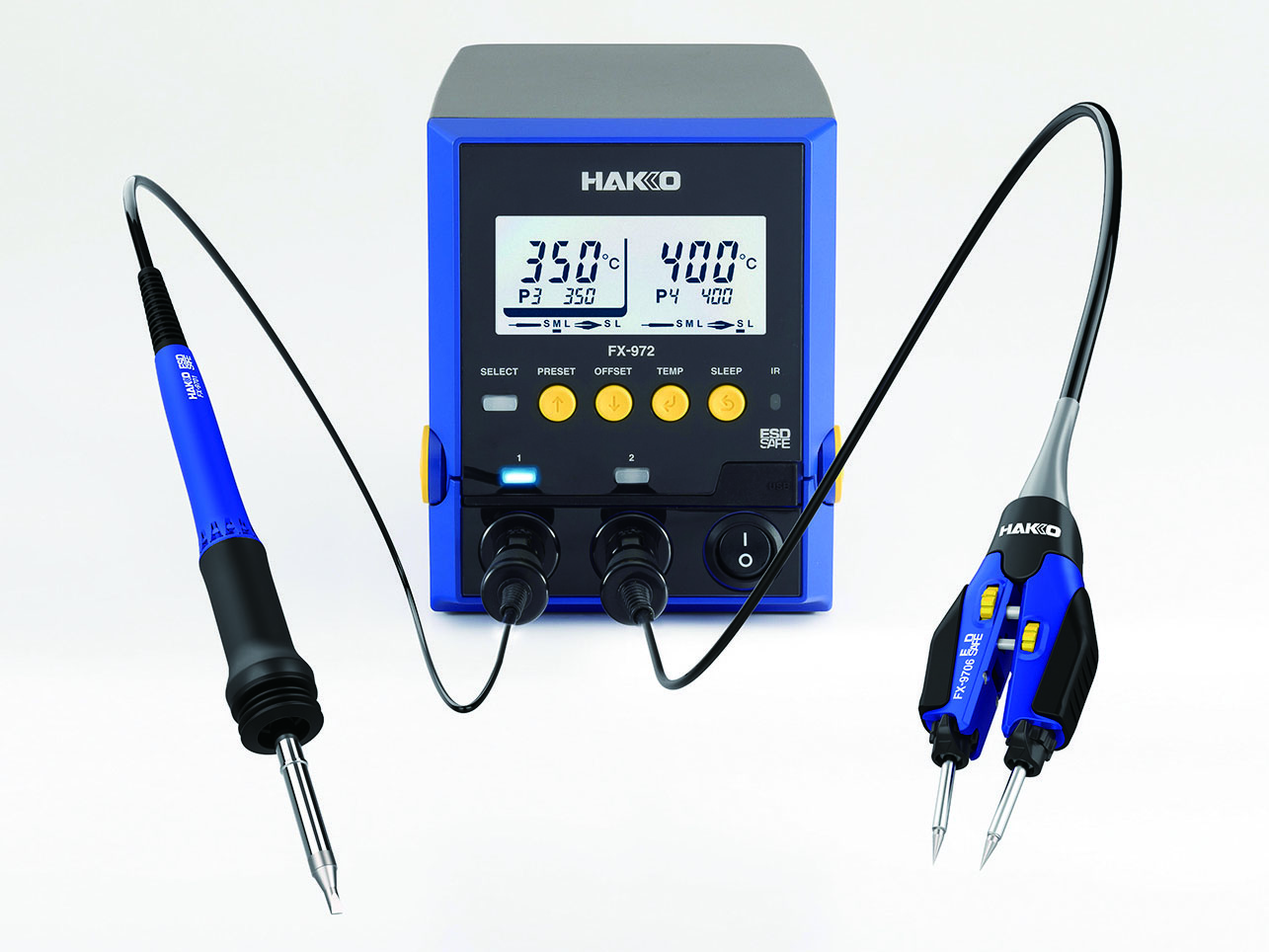

The FX-972 enables you to operate two different soldering tools simultaneously, which is particularly advantageous for complex soldering tasks with different temperature requirements. The independent temperature control for both channels gives you maximum control over your soldering processes. With its high power, the station is also suitable for large components and demanding applications.

Maximum Flexibility Through 8 Different Handpiece Options

The FX-972 was designed for maximum versatility in professional use. With a total of eight different handpiece options, it offers an exceptional range of applications for almost any soldering requirement. The station is characterized by its compatibility with various soldering iron types, allowing it to be used efficiently for both delicate electronics work and more demanding soldering tasks.

The heart of the FX-972 is the intelligent 2-channel technology. A built-in sensor automatically recognizes the handpiece being used and switches to the corresponding channel without manual intervention. Particularly advantageous: While one handpiece is actively used, the second remains at the set temperature in standby. This innovative priority channel function enables seamless switching between different soldering applications without waiting times, significantly increasing work efficiency in professional electronics workshops.

Ergonomic Design with Thoughtful Control Functions

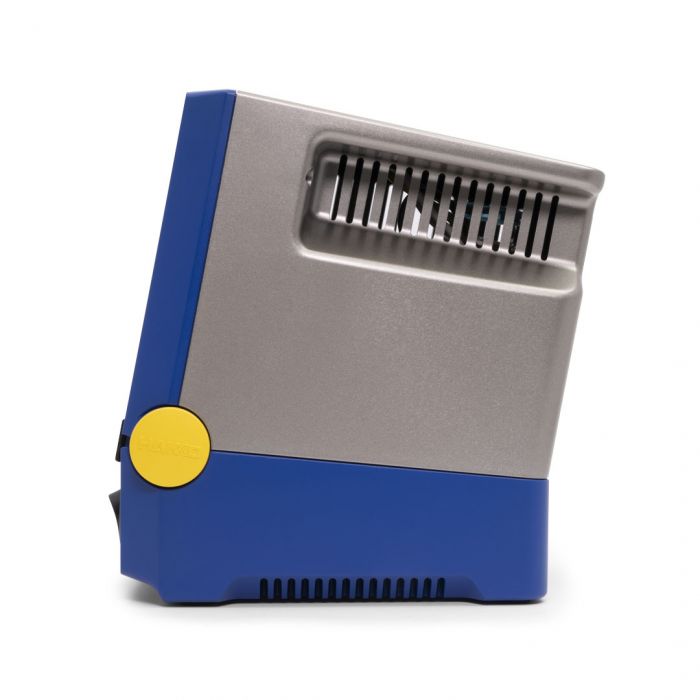

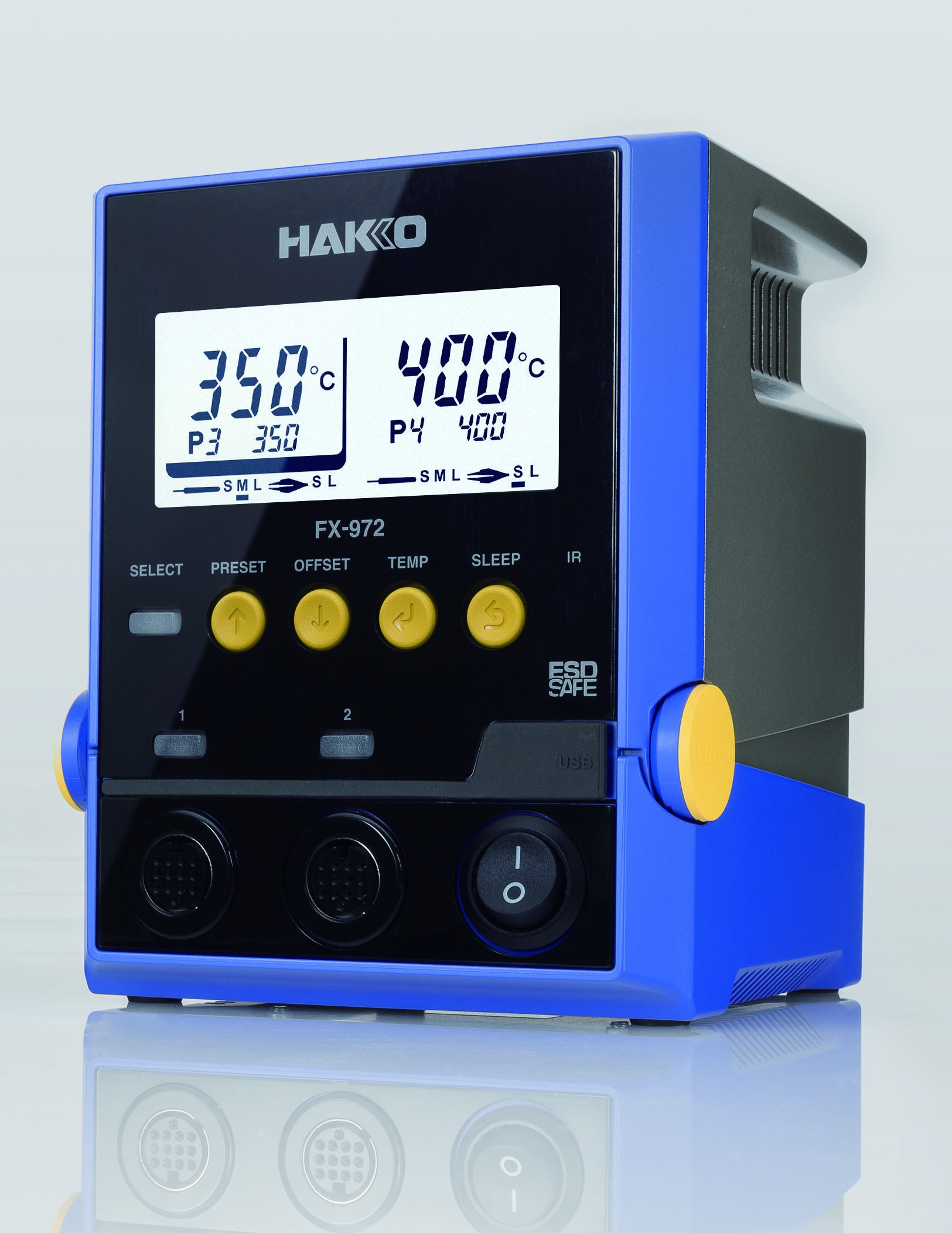

The particularly user-friendly design of the FX-972 was developed with a focus on optimal ergonomics and operability. An outstanding feature is the adjustable tilt of the housing, which enables an individually adjustable display angle. This allows the display to be optimally adjusted to different working heights and lighting conditions, significantly improving readability under various conditions.

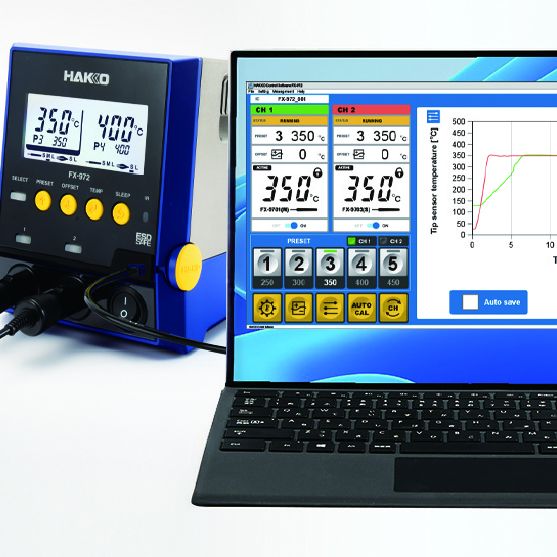

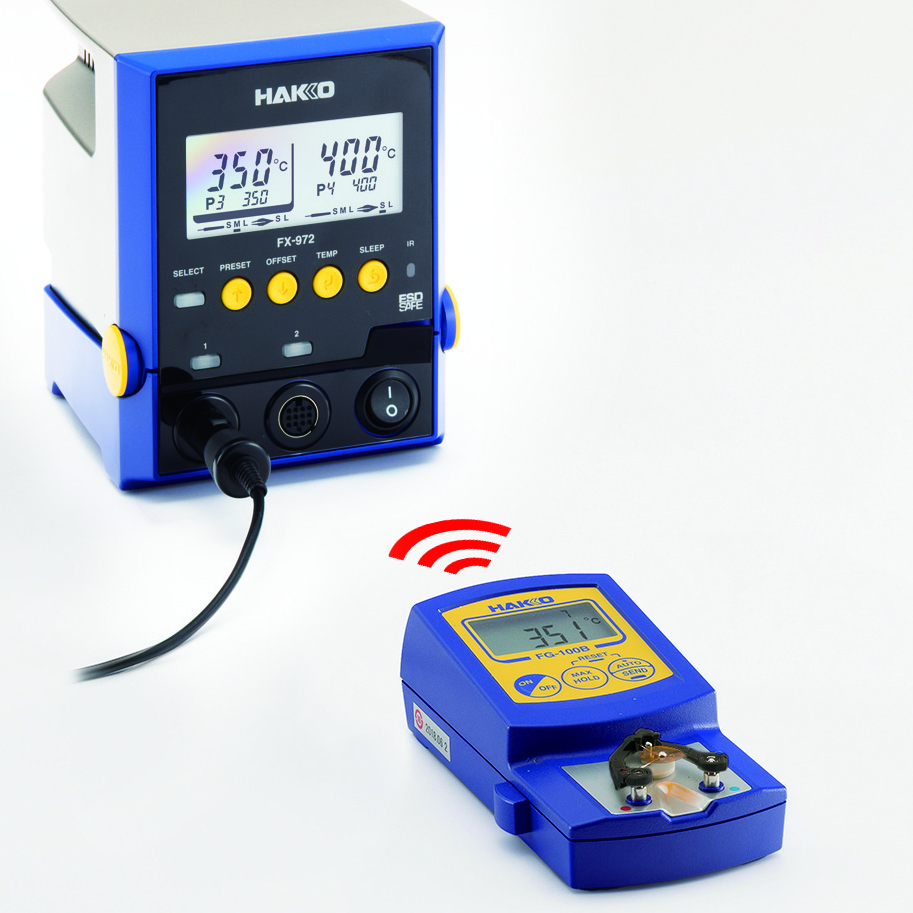

The FX-972 features a PC software interface for traceability of the soldering process. This function allows integration into computer-assisted workflows and expands the application possibilities of the soldering station in professional environments. Additionally, the station supports infrared communication with the HAKKO tip thermometer, enabling precise temperature control and calibration.

Energy Efficiency and Safety Functions

For energy saving, the FX-972 features a configurable auto-sleep function that automatically reduces the temperature when the station is not used for a certain period. Additionally, an automatic shutdown function ensures that the soldering station is completely shut down after a preset time. These intelligent functions not only increase energy efficiency but also extend the life of the soldering tips and contribute to general operational safety.

Highlights

• Wide Range of Applications
• 8 Handpiece Options Available
• Intelligent Priority Channel Function
• Ergonomic Design with Adjustable Housing Tilt
• Informative Display
• High Power Even for Large Components
• PC Software Interface for Process Traceability
• Infrared Communication with HAKKO Tip Thermometer
• Auto-Sleep and Shutdown Automation
• Comprehensive Soldering Tip Range for All Application Situations
• Optimal Temperature Change and Heat-Up Behavior

Package Contents

• FX 972-311 Dual Soldering Station including power cable
• FX 9701-81 Soldering Iron 95 W for use with T39 series soldering tips
• FH 215-81 Tool Holder
• A 5038 Cleaning Sponge
• A 1561 Metal Mesh
• B 5348 Green Color Band (2 pieces per package)

Video

In our product video for the Hakko FX-971 and FX-972 soldering stations, you can see both stations in detail and get more information on their features.

Further Information

Detailed information, manuals, and tips for use can be found in our wiki article on Hakko soldering stations and desoldering guns.

Compatible Accessories

The FX-972 supports eight different handpiece options for maximum flexibility:

• FX-9701 Standard Soldering Iron (95 W): For everyday soldering work and standard applications
• FX-9702 N₂ Soldering Iron (95 W): For work under nitrogen protective gas atmosphere
• FX-9703 Micro Soldering Iron (70 W): For particularly precise and delicate applications
• FX-9704 N₂ Micro Soldering Iron (70 W): Micro soldering iron with nitrogen support for finest work
• FX-9707 Soldering Iron (200 W): For demanding applications with large components
• FX-9708 N₂ Soldering Iron (200 W): Nitrogen soldering iron with high power for demanding applications
• FX-9706 Rework Tweezers: For SMD work and precise desoldering of surface mount components
• Additional Handpieces: Further specialized handpieces are available depending on requirements

The station is compatible with soldering tips from the T39, T50, and T53 series. The comprehensive soldering tip range covers all application situations. The right tip choice depends on your chosen soldering iron and the specific application. The combination overview helps you find the right combination of station, soldering iron, tool holder, and soldering tip.

Additionally, tool holders, cleaning tools, the HAKKO tip thermometer for infrared communication, and spare parts are available to keep your soldering station in optimal condition at all times.
