Solarpunk Synthesizer Kit – Solar-Powered DIY Sound Generator

Product information "Solarpunk Synthesizer Kit – Solar-Powered DIY Sound Generator"

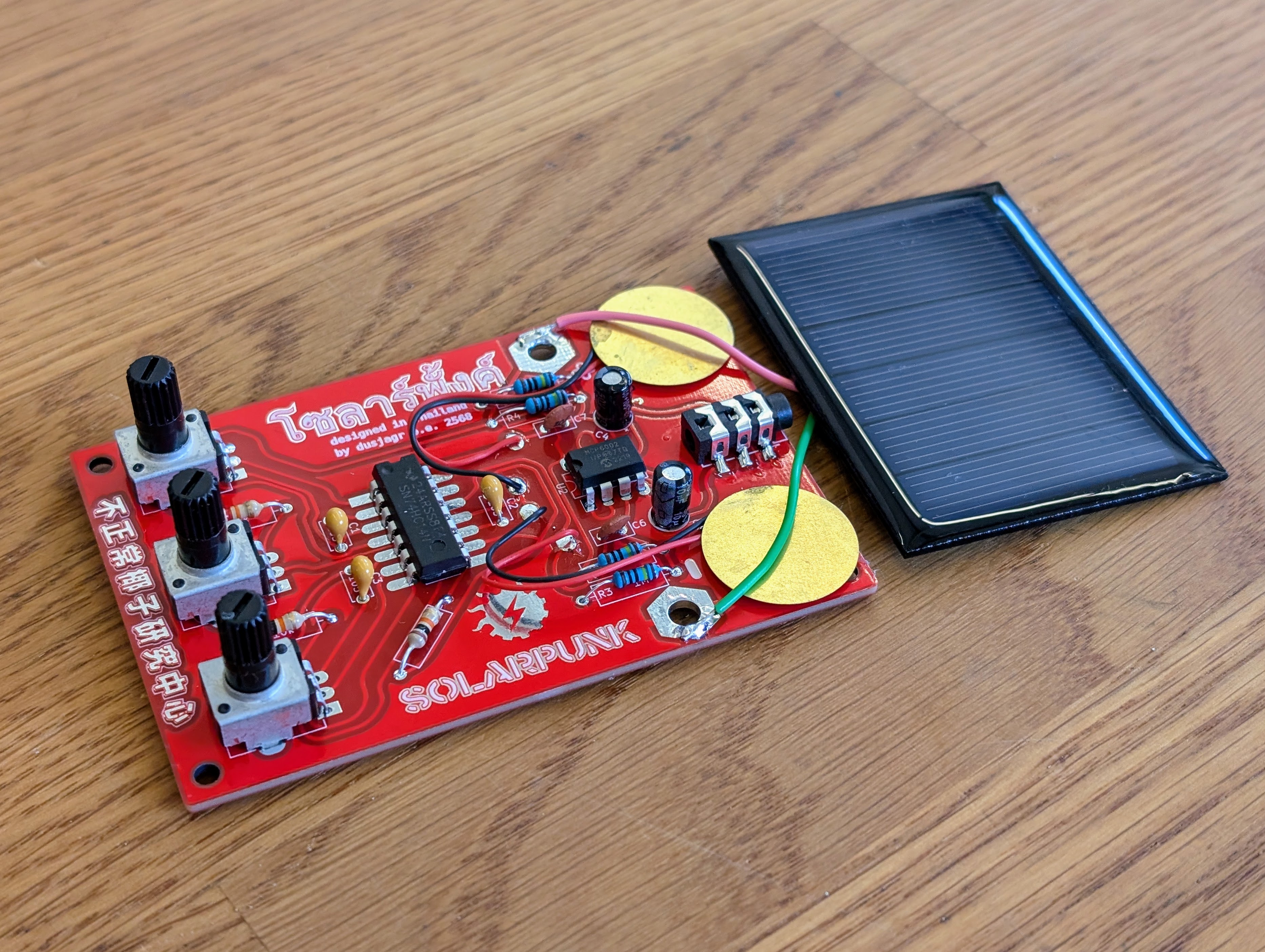

Solarpunk Synthesizer – DIY Noise Kit with Solar Power

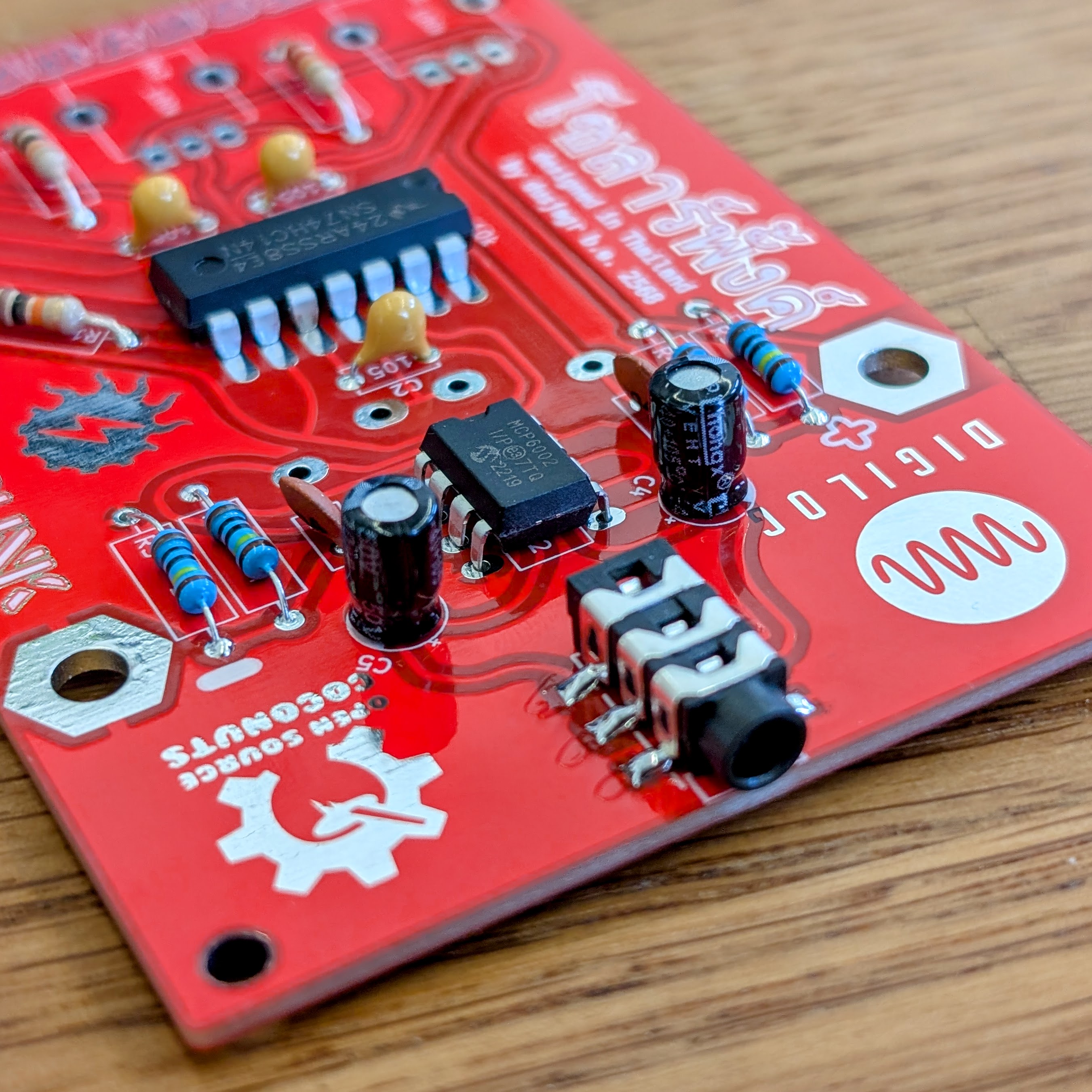

The Solarpunk Synthesizer is a unique soldering kit for sound explorers, noise enthusiasts, and synth lovers. Based on a minimal analog circuit using a Schmitt trigger (74HC14), an op-amp, and three potentiometers, this synthesizer creates fascinating and quirky soundscapes – all powered by a small solar panel.

The Concept

The original sound module was developed in 1996 by Ralf Schreiber. Over time, it was refined and transformed into a Through-Hole Technology (THT) version by Marc Dusseiller and Jörg Heinemann, making it suitable for workshops and DIY enthusiasts. The result: a fun and accessible solar-powered synthesizer for everyone.

What makes it special?

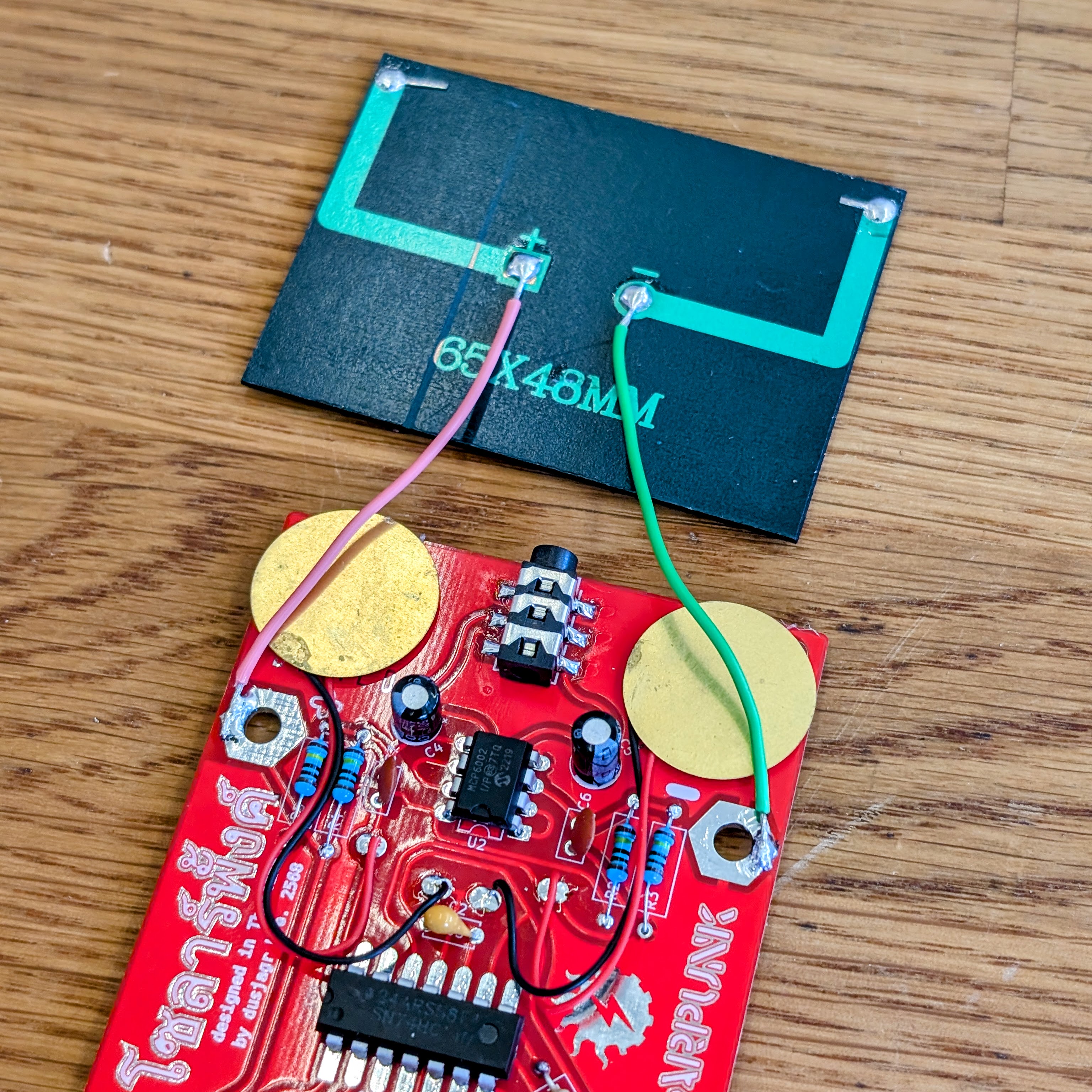

  • No batteries needed: Powered entirely by a small solar panel
  • Ever-changing sound: The light level directly affects the sound
  • Unique tones: Each module sounds different, like birds or insects
  • 3.5 mm audio jack: Connect to headphones, speakers, or audio interfaces
  • Great for experimentation: Circuit is easy to modify and expand

Perfect for:

  • DIY audio & synth lovers
  • Solar energy & electronics workshops
  • Solarpunk and maker communities
  • Artists, educators & sound designers

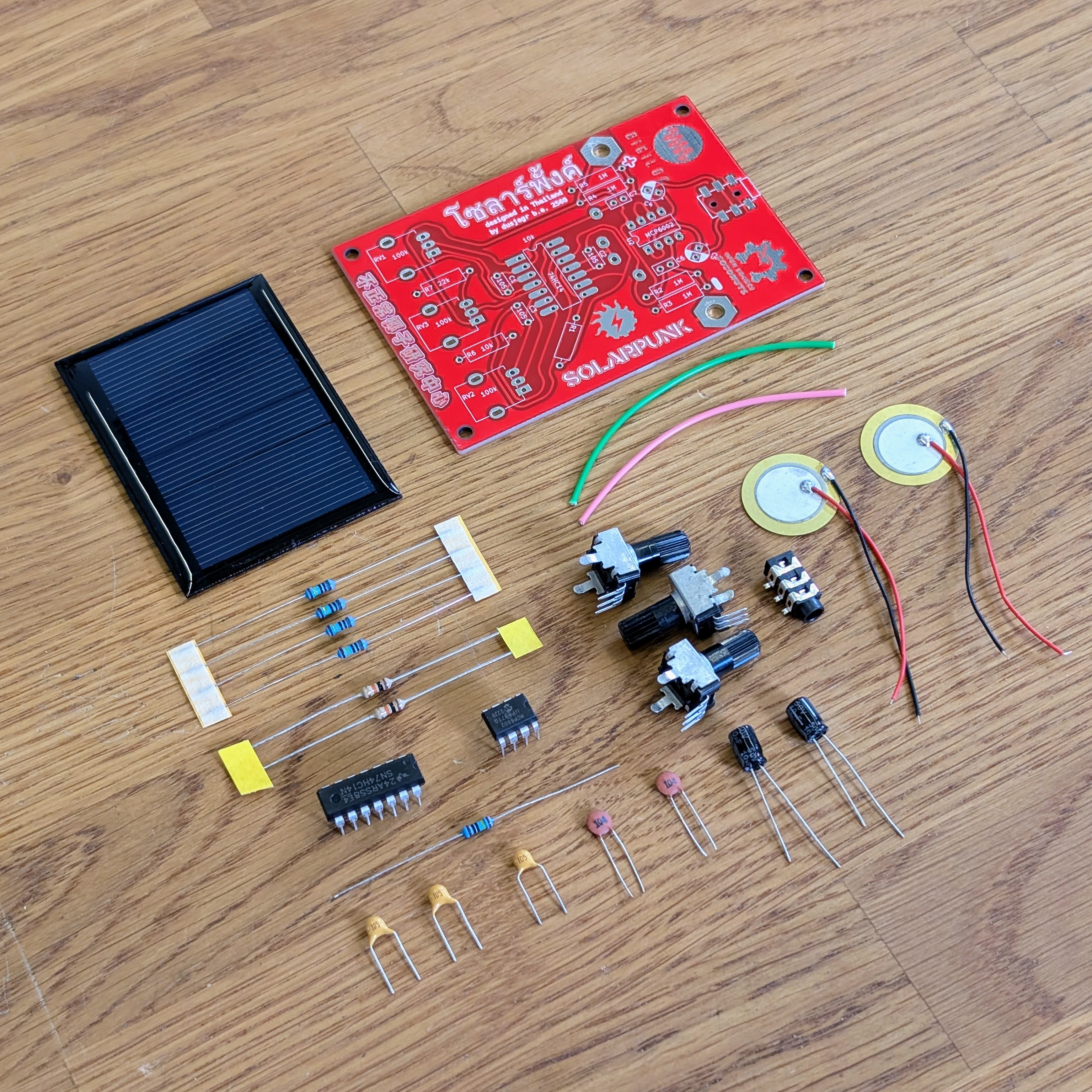

Kit contents:

  • 1x Solarpunk Synth PCB
  • 1x Schmitt Trigger IC 74HC14
  • 1x MCP6002 dual op-amp
  • 3x Potentiometers 100 kΩ (RV1–RV3)
  • 1x Solar panel
  • 3x Ceramic capacitors 1 µF (C1–C3)
  • 2x Ceramic capacitors 100 nF (C6, C7)
  • 2x Electrolytic capacitors 10 µF (C4, C5)
  • 1x Resistor 22 kΩ (R7)
  • 2x Resistors 10 kΩ (R1, R6)
  • 4x Resistors 1 MΩ (R2–R5)
  • 2x Piezo buzzers (Ø 20 mm)
  • 1x 3.5 mm headphone jack
  • 2x ~5 cm wire

Note:

This synthesizer works exclusively with sunlight or strong ambient light. The sound changes continuously depending on the light level – ideal for natural sound experiments and interactive installations.

For circuit diagrams and additional info, check our blinkyWiki.

Build Time: 1-2 Hours
Difficulty: Medium
Manual and iteractive board: https://binary-kitchen.github.io/SolderingTutorial/
Target group: Children, Grownup, Nerd

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Skip product gallery

Weitere Blinke-Bausätze

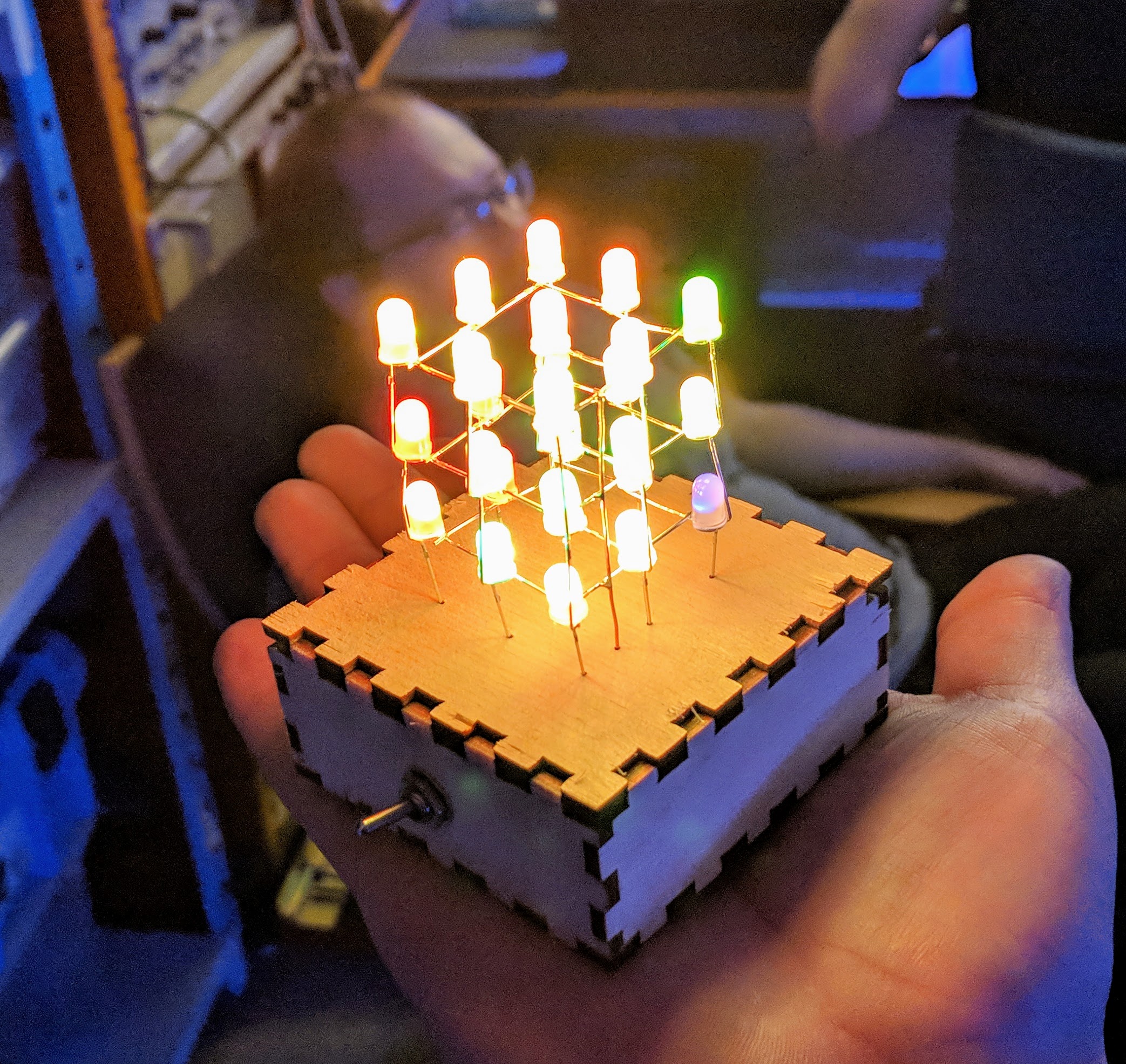

LED Cube - A colorful LED 3D cube with 27 colorful glowing LEDs
LED Cube - A colorful LED 3D cube with 27 colorful glowing LEDs

LED Cube – A Colorful 3D Cube with 27 RGB LEDs The LED Cube is a vibrant soldering kit featuring 27 RGB LEDs arranged in a 3x3x3 cube structure. The LEDs light up automatically in changing rainbow colors – no programming required! Thanks to a clever template and our step-by-step guide, assembly is straightforward and suitable for beginners. Once the cube is soldered, it is placed into a beautifully crafted wooden box that acts as both a stand and a battery compartment. Kit Highlights: 27 colorful RGB LEDs for fascinating light effects Powered by 2x AA batteries (not included) No programming or flashing needed – just solder and enjoy Sturdy wooden enclosure doubles as a base and power supply box Perfect for your desk, living room, or as a creative gift Included in the Kit: 27x RGB LEDs (5 mm) 1x Step-up module (0.8 – 3.3 V input to 3.3 V output) 1x Toggle switch 1x AA battery holder 1x Flexible wire 1x Solid-core wire 7x Wooden box elements 2x AA batteries required (not included) How It Works: Once assembled, the cube automatically lights up in various vibrant colors. The RGB LEDs continuously shift in a mesmerizing pattern – all without any microcontroller or programming! Watch the LED Cube in Action: Conclusion: The LED Cube is an eye-catching yet easy-to-build soldering kit that’s perfect for electronics enthusiasts and creative minds alike. Show off your soldering skills with this fun and functional light sculpture!

Regular price: €11.50
LED Jewlery - Simple Kit with Color-Changing LEDs
LED Jewlery - Simple Kit with Color-Changing LEDs

Solder your own jewelry or create a unique jewelry set as a gift! A simple soldering kit with colorful color-changing LEDs that requires a little skill and a delicate touch. The kit includes accessories to solder 2 earrings and one pendant, each with 4 LEDs. The four LEDs are connected so that you can clamp a 3 V coin cell (not included) between the leads, and the LEDs will light up in all the colors of the rainbow. Included: 12 colorful color-changing LEDs 2 earring hooks made of 925 sterling silver 3 large steel rings, 12 mm 1 small jump ring, 4 mm Manufacturer and product safety information The earring hooks are made of 925 sterling silver, lead-free and nickel-free. Nickel and lead cannot be ruled out in the remaining parts of the kit. If you notice signs of an allergic reaction, remove the jewelry immediately and consult a doctor. Not suitable for children under 14 years of age or for persons who tend to put non-edible objects in their mouth. Always store all individual parts as well as the finished jewelry, especially the coin cell, safely and out of reach of children! Check regularly that the coin cell is still held securely in the jewelry to prevent it from being lost. Do not wear the jewelry in the presence of children, and keep the jewelry — especially the coin cell — out of children’s reach. Swallowing a coin cell is life-threatening. If ingestion or insertion is suspected, seek medical attention immediately. Avoid contact with water, perfume, hairspray, and cleaning agents to prevent discoloration. Please remove your jewelry before sleeping, swimming, or physically strenuous activities. Do not wear the jewelry during sports activities to avoid snagging. Silver jewelry may tarnish over time; this is a natural chemical reaction and not a quality defect. Mandatory information in accordance with the GPSR applicable since 13 December 2024 The manufacturer is Blinkyparts GmbH Egerstr. 9 93057 Regensburg E-Mail: shop@blinkyparts.com

Regular price: €5.00

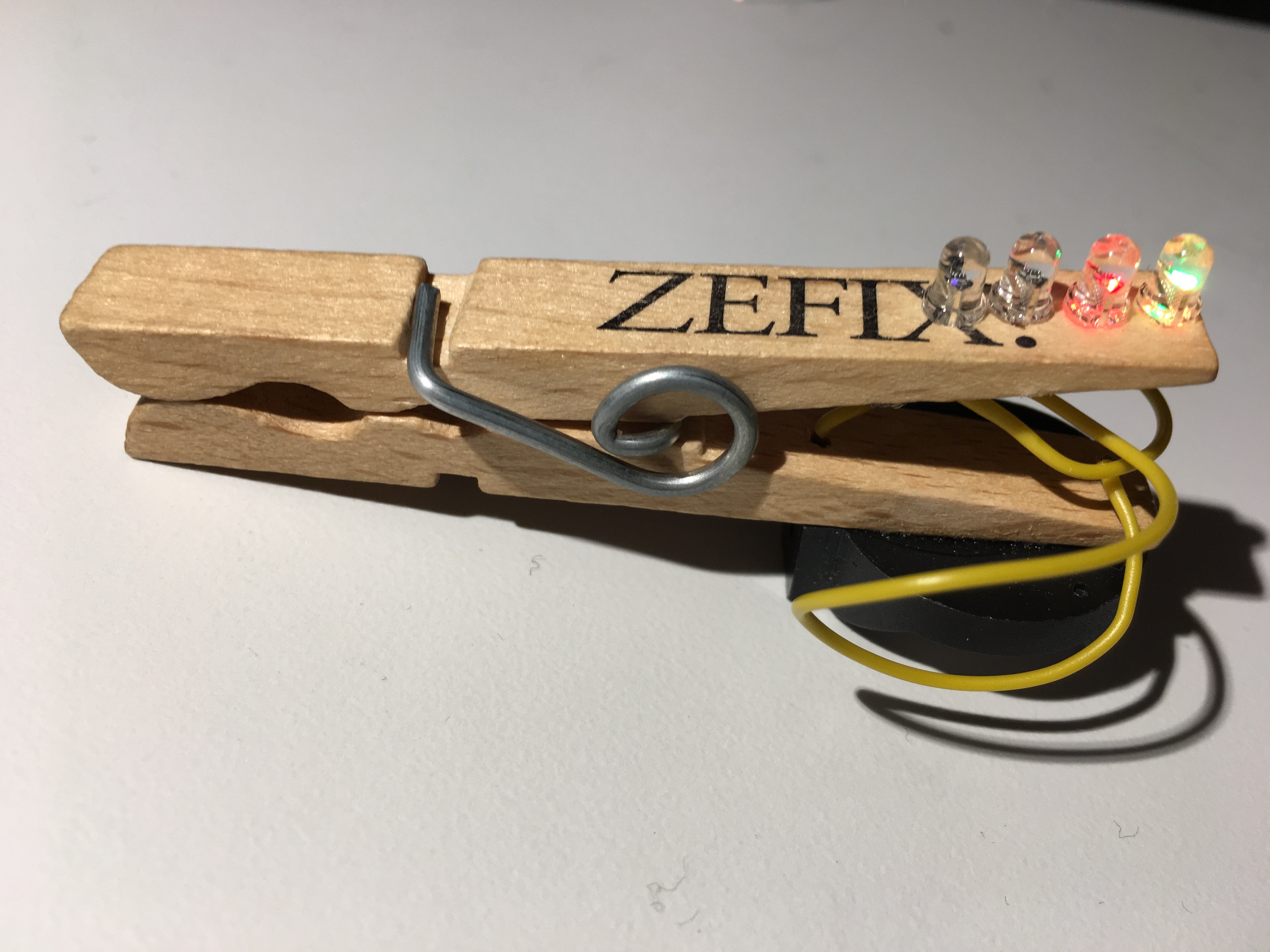

Nibble Peg - Very simple kit with 4 LEDs
Nibble Peg - Very simple kit with 4 LEDs

A very simple soldering kit with four LEDs. The four LEDs are connected with a few wires to a battery holder. As soon as a battery is inserted, the LEDs light up in all colors of the rainbow. Thanks to the clothespin, you can easily attach the artwork afterwards. No big soldering skills are needed for this kit. It is really ideal even for children and teenagers.The name comes from the unit "Nibble". A nibble is a unit for four bits (half a byte).

Regular price: €2.99

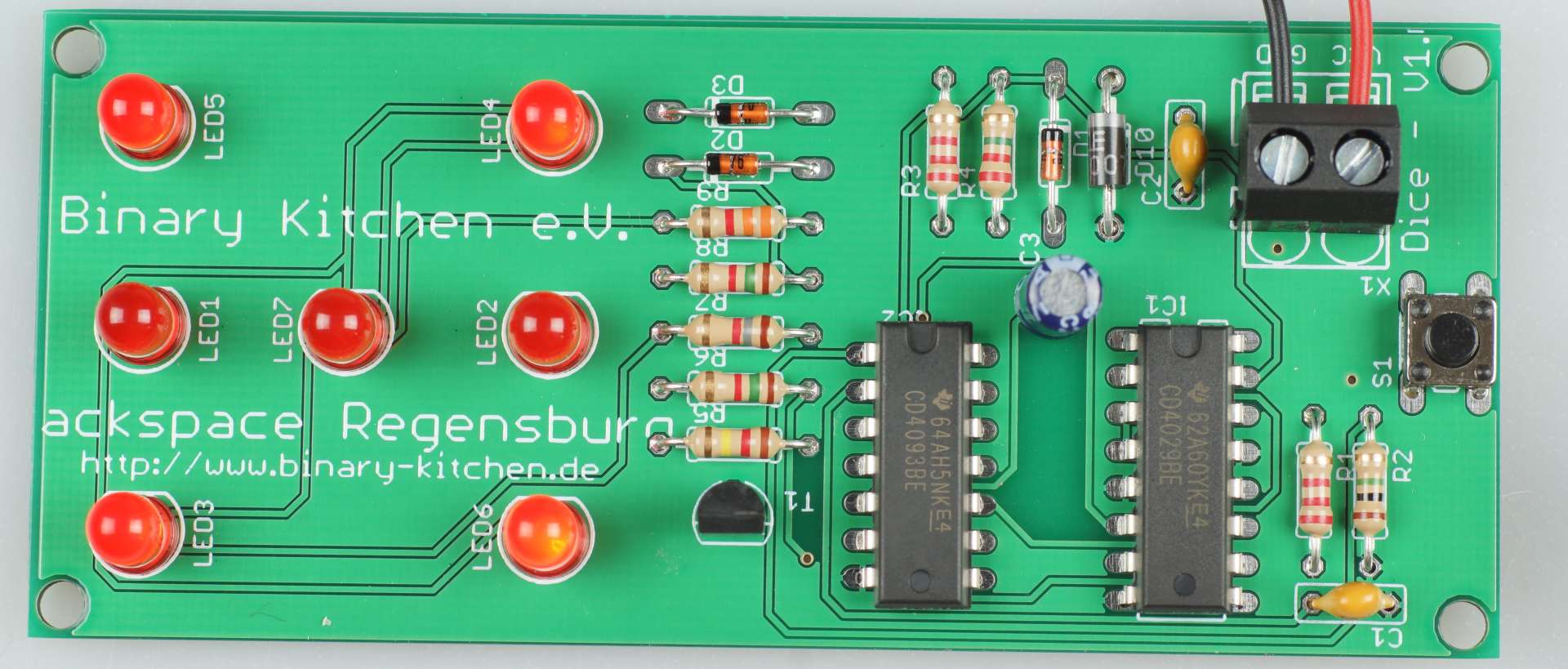

Dice with logic circuits - A medium dice kit ideal for beginners and experienced students
