Hakko FR-301 Desoldering Pump – Professional 110W Desoldering Gun

The Hakko FR-301 is a practical desoldering gun in a case, designed for efficient and precise desoldering. With its integrated membrane pump and ergonomic design, it enables safe operation even for complex repair and rework tasks. Unique features significantly improve the efficiency of desoldering work.

Technical Specifications

• Power: 110 W
• Temperature Range: 350°C to 500°C
• Vacuum: up to 81 kPa
• Suction Power: 11 L/min
• Quick-change system for nozzles even when hot
• Nozzles compatible with FR-410 desoldering station
• ACF (Anti Clogging Function)

Features

The FR-301 is characterized by its rapid heating and constant temperature control. The quick-change system allows you to easily replace desoldering nozzles without waiting for them to cool down. The ergonomic shape ensures comfortable operation even over extended periods.

The desoldering nozzles are compatible with the FR-410 desoldering station, giving you maximum flexibility in choosing the right tool. The valve function with high suction power improves maintenance capabilities and ensures safe desoldering.

Unique Features

ACF (Anti Clogging Function)

The suction pump continues to run for a certain period after releasing the trigger (1 to 5 seconds). This function ensures that the desoldered solder is safely carried into the filter tube. The high temperature in the inner area of the suction tube prevents clogging by cooling solder. Suction starts 0.2 seconds after the trigger is activated. The high pressure built up in this way enables complete desoldering and prevents clogging with solder.

Improved Suction Channel

The heating performance in the inner area of the suction tube heating element has been improved to ensure that the aspirated solder remains liquid until it enters the filter. This ensures reliable desoldering even with larger amounts of solder.

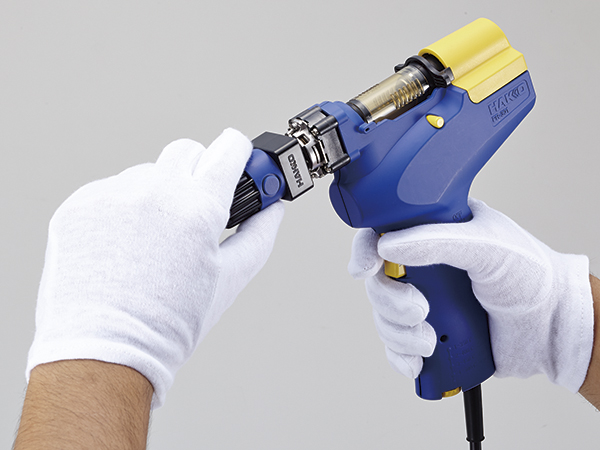

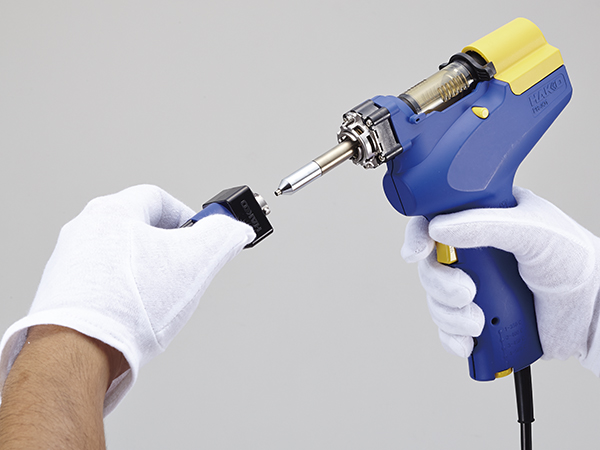

Easy Nozzle Change

A special release tool allows you to safely, easily, and smoothly exchange nozzles. You can change the nozzles even when hot, without waiting for them to cool down.

Easy Heating Element Replacement

To replace the heating element, simply loosen three screws on the heating element. This simple maintenance capability significantly extends the life of your desoldering gun.

Larger Filter and More Transparency

The filter has been enlarged to protect the pump from flux residues. The transparent filter housing cover makes it easy to assess the saturation of the filter, so you can change the filter in time.

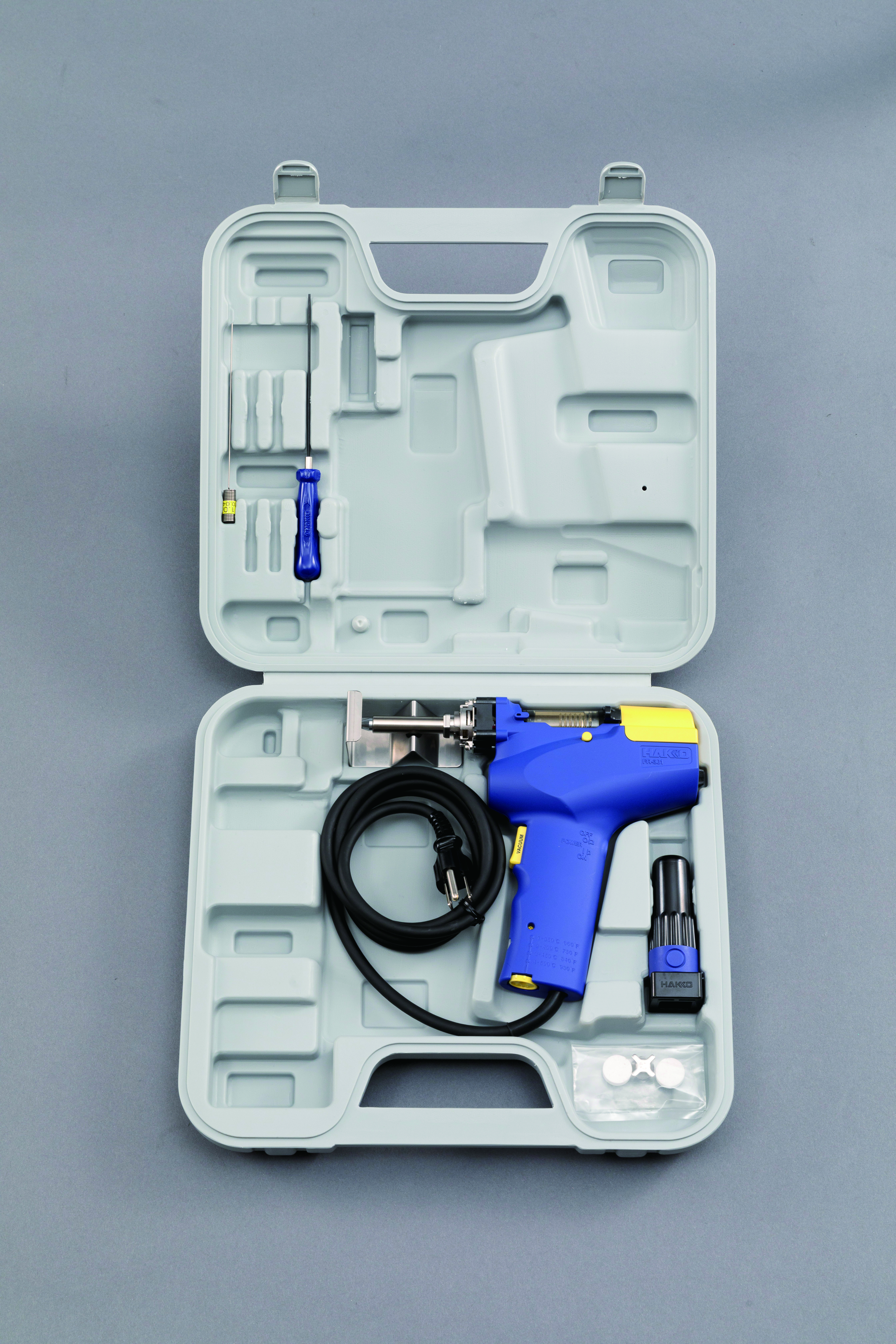

Package Contents

• N61-08 Desoldering Nozzle Ø1.0 mm
• B 1087 Cleaning Needle for Nozzle Ø 1.0 mm
• B 1085 Cleaning Needle for Heating Element
• B 5104 Pre-filter
• A 5044 Ceramic Paper Filter
• C 5003 Simple Desoldering Iron Stand
• B 5106 Nozzle Tool
• C 5042 Transport Case

Further Information

Detailed information, manuals, and tips for use can be found in our wiki article on Hakko soldering stations and desoldering guns.

Compatible Accessories

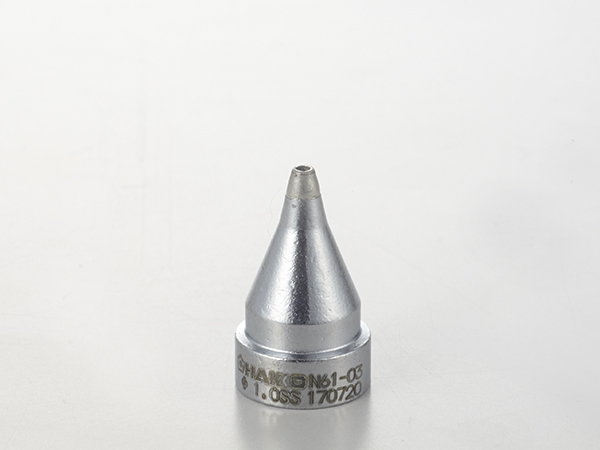

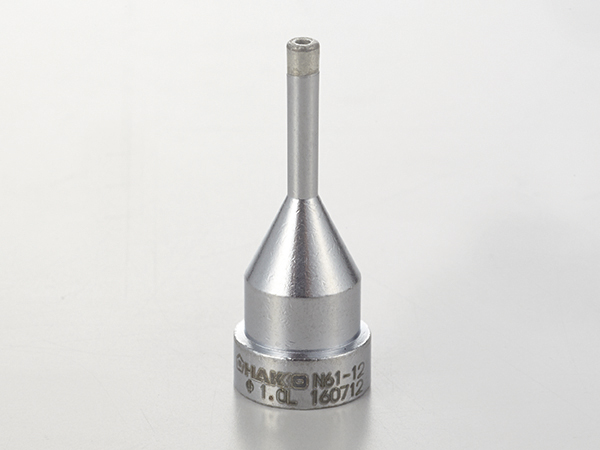

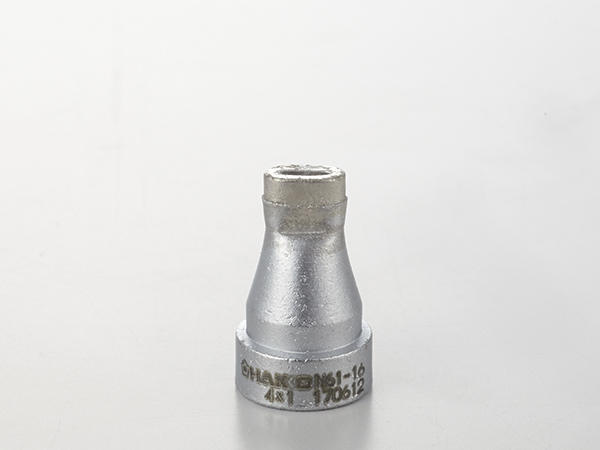

For optimal results, we recommend using compatible desoldering nozzles from the N61 series. These are available in various diameters to handle different solder joint sizes. The nozzles are compatible with the FR-410 desoldering station, giving you additional flexibility. Choosing the right nozzle is crucial for precise desoldering without damaging the circuit board.

Additionally, cleaning tools, replacement filters (pre-filter and ceramic paper filter), replacement heating elements, and further spare parts are available to keep your FR-301 in optimal condition at all times.
