Draussenfuchs – 433 MHz Yagi Antenna Kit for Fox Hunting (ARDF)

Draussenfuchs 433MHz Yagi antenna kit - The antenna diagram

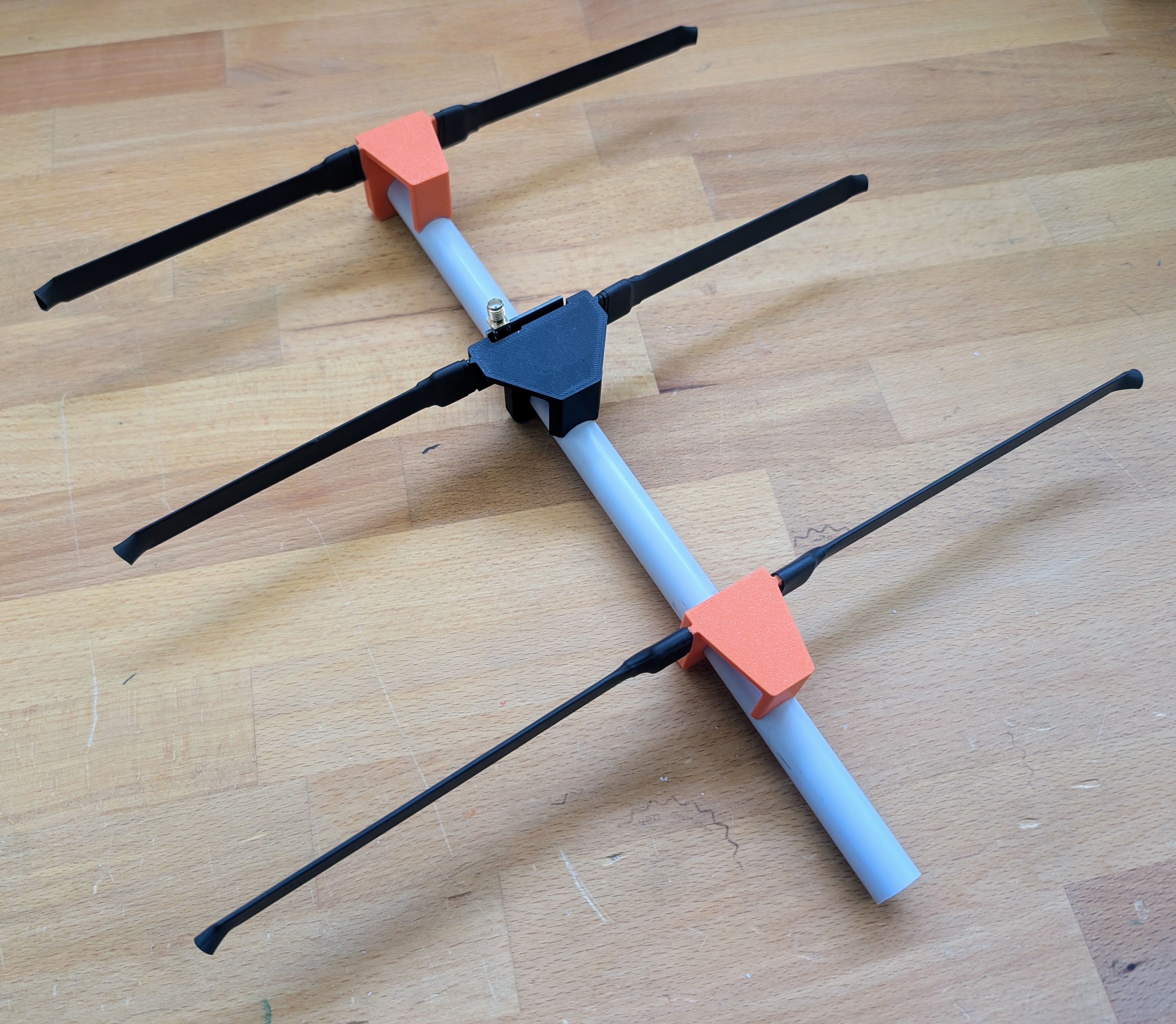

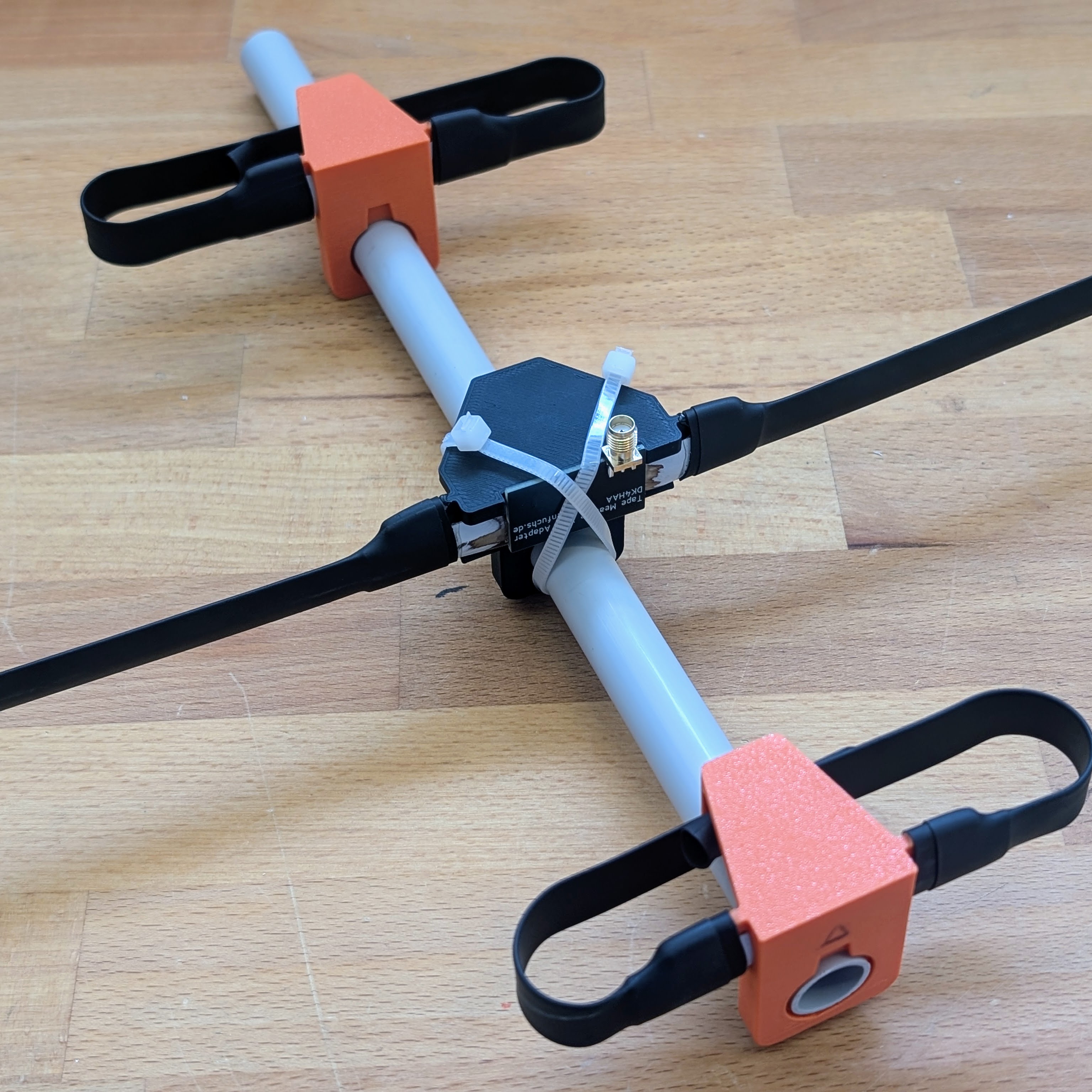

Draussenfuchs 433MHz Yagi antenna kit - The finished antenna

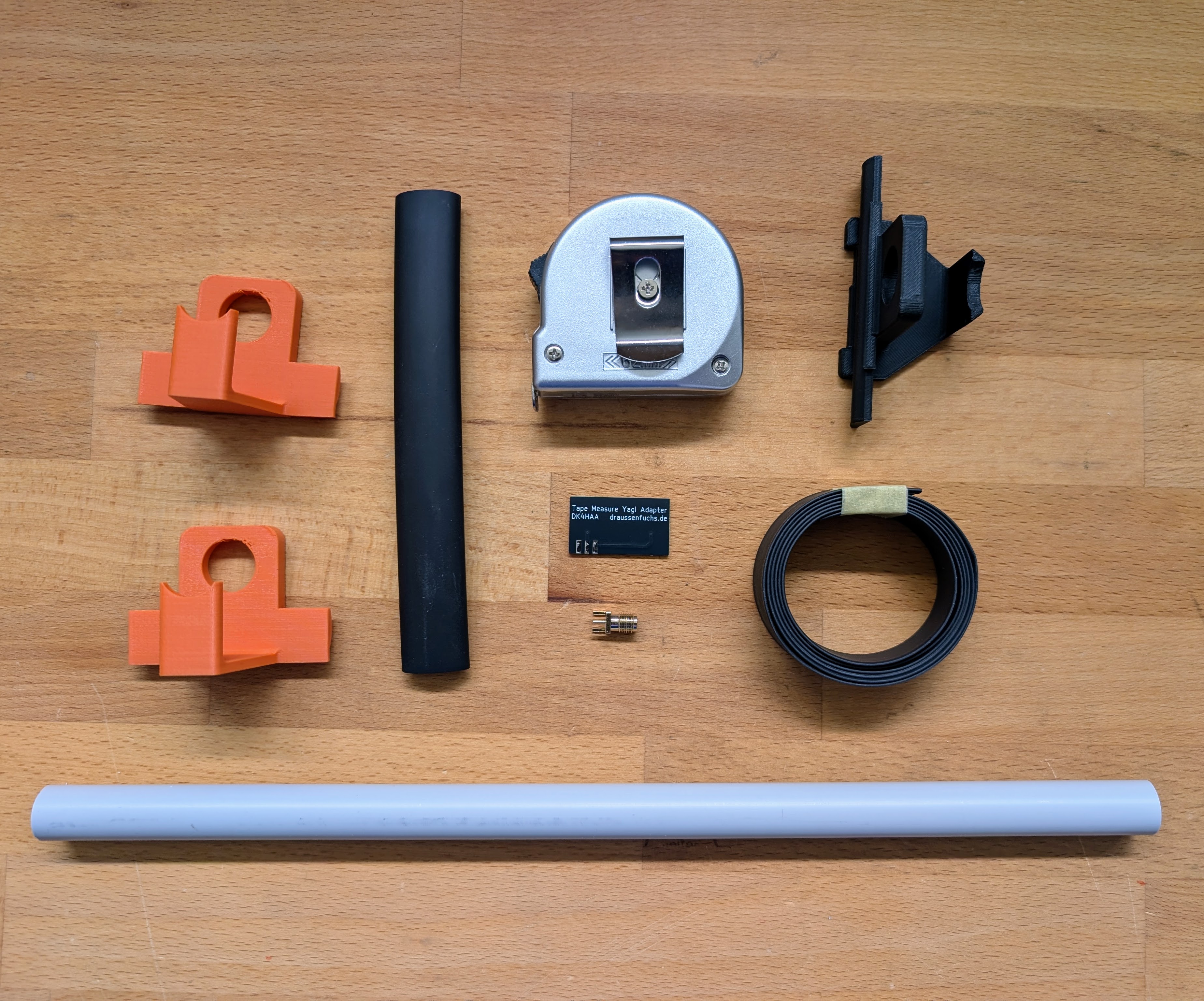

Draussenfuchs 433MHz Yagi antenna kit - The individual parts

Draussenfuchs 433MHz Yagi antenna kit - The antenna without heat shrink tubing

Draussenfuchs 433MHz Yagi antenna kit - Only the tape measure parts

€14.99*

Prices incl. VAT plus shipping costs

Available in 14 days, delivery time 1-3 days

Product number: blink23154

Product information "Draussenfuchs – 433 MHz Yagi Antenna Kit for Fox Hunting (ARDF)"

433 MHz Yagi Antenna – Lightweight Kit for Fox Hunting & ARDF

The Draussenfuchs Yagi Antenna is a lightweight, DIY antenna kit specifically designed for 433 MHz amateur radio direction finding (ARDF) and fox hunting. It is the ideal companion for our Draussenfuchs 433 MHz transmitter.

Why this antenna?

Optimized for 433 MHz – perfect for ISM and ARDF applications
Lightweight & rollable – can be easily packed away when not in use
Durable & safe – ideal for outdoor use, youth workshops and educational purposes
DIY-friendly – based on simple, widely available hardware store parts

Included or needed parts:

Measuring tape (12.5 mm wide), cut to length
Irrigation tube (6 mm outer diameter)
4-way connectors, heat shrink tubing, M3 threaded rod
Custom Yagi PCB for stable assembly
SMA connector for side-mounted PCB connection

Recommended accessories:

Learn more:

Find a detailed build guide and tips in our online Wiki: 👉 ➡️ Go to the Wiki article about the Draussenfuchs Yagi Antenna

Note: This directional antenna is ideal for license-free 433 MHz use and works with any compatible receiver – such as our legal, receive-only handheld unit, perfect for use without a radio license.

Build Time:	1-2 Hours
Difficulty:	Medium
Manual and iteractive board:	https://binary-kitchen.github.io/SolderingTutorial/
Target group:	Citizens band radio (CB), Radio Operator (HAM)
